LM324 Quad Op-Amp IC | Low Power Operational Amplifier | DIY Electronics & Robotics

Product Description:

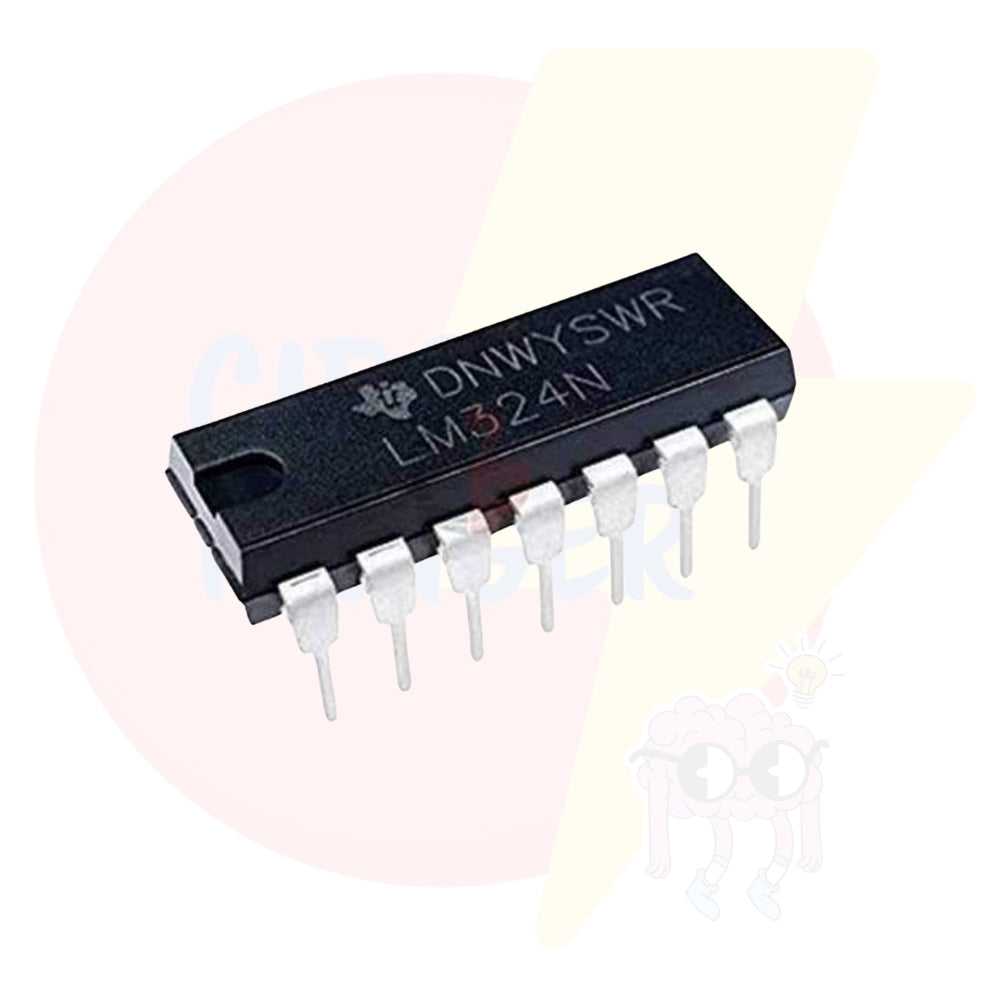

The LM324 is a versatile quad operational amplifier (Op-Amp) IC that integrates four high-gain, independently functioning op-amps into a single 14-pin DIP package. Designed for low-power consumption and wide voltage operation, the LM324 is ideal for signal conditioning, sensor interfacing, active filters, voltage followers, and many more analog applications.

Unlike traditional op-amps, the LM324 can operate from a single power supply, making it suitable for modern electronics like microcontroller-based systems (Arduino, ESP32, Raspberry Pi), audio circuits, and instrumentation setups.

Key Features:

🔧 Four Independent Op-Amps – Saves board space and increases circuit flexibility
⚡ Single or Dual Supply Operation – Works from 3V to 32V (or ±1.5V to ±16V)
💡 Low Power Consumption – Ideal for battery-operated and portable devices
📏 Wide Common Mode Range – Suitable for ground-referenced signal amplification
🛠️ Standard 14-Pin DIP Package – Easy to breadboard or mount on PCBs

Technical Specifications:

IC Type: Quad Operational Amplifier

Model: LM324

Package: 14-Pin DIP (Dual Inline Package)

Number of Amplifiers: 4

Operating Voltage (Single Supply): 3V to 32V

Operating Voltage (Dual Supply): ±1.5V to ±16V

Input Offset Voltage: Max 2mV

Slew Rate: 0.5V/μs

Gain Bandwidth Product: 1.2 MHz

Output Voltage Swing: 0V to VCC – 1.5V

Operating Temperature Range: 0°C to +70°C

Input Bias Current: ~45nA (typical)

Power Consumption: Low power draw

Pin Count: 14

Applications:
✅ Sensor Signal Amplification
✅ Analog Signal Conditioning
✅ Audio Signal Processing
✅ Voltage Comparators & Oscillators
✅ Instrumentation & Data Acquisition
✅ DIY Electronics & Embedded Systems
