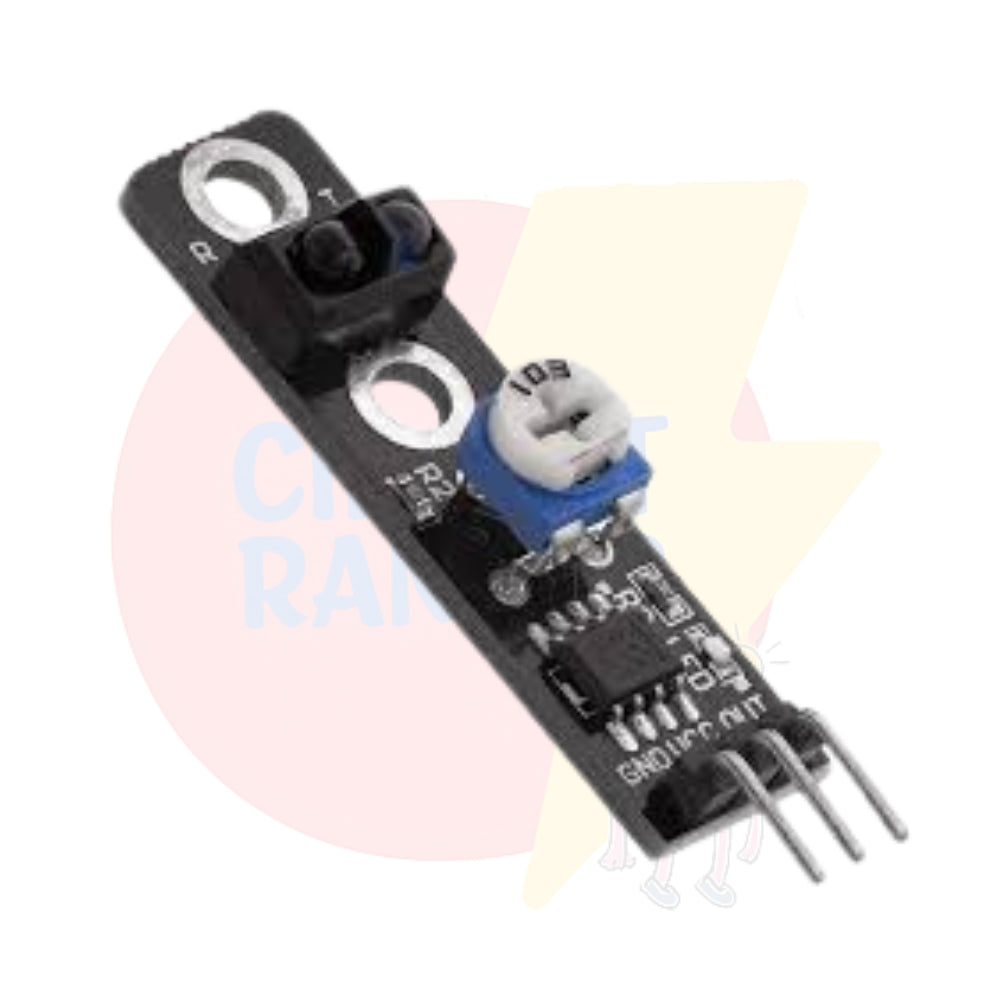

TCRT5000 Single Channel Line Tracking Sensor Module
TCRT5000 Single Channel Line Tracking Sensor Module
SKU:C2D
Couldn't load pickup availability
- Free Shipping on prepaid orders above INR 499/-
- Same day dispatch - if ordered before 2pm
- Dedicated Support - Mon to Sat - 10 AM to 6 PM
- Detect lines, edges, or reflective surfaces accurately with the TCRT5000 Line Tracking Sensor Module. This single-channel infrared sensor is perfect for line-following robots, obstacle detection, and automation projects. Compact, lightweight, and easy to integrate, it is ideal for students, hobbyists, and STEM learning kits.
- ✅ Features:
- Infrared Sensor Module: Detects white/black lines or reflective surfaces
- Digital Output: HIGH/LOW signal indicates line detection status
- Indicator LED: Onboard LED shows output state for easy debugging
- Adjustable Sensitivity: Potentiometer allows fine-tuning for different surfaces
- Compact Design: Fits easily into small robotic chassis and circuits
- Plug & Play: Compatible with Arduino, ESP8266, Raspberry Pi, and other microcontrollers
- ⚙️ Specifications:
- Model: TCRT5000 Single Channel Line Tracking Sensor Module
- Operating Voltage: 3.3V – 5V DC
- Output Type: Digital (High/Low)
- Sensor Type: Infrared reflective
- Module Dimensions: Approx. 3.2cm × 1.4cm
- Pins: VCC, GND, DO
- 💡 Applications:
- Line-following robots and autonomous vehicles
- DIY robotics and STEM learning projects
- Obstacle and edge detection circuits
- Arduino, ESP8266, and Raspberry Pi experiments
- 📦 Package Includes:
- 1 × TCRT5000 Single Channel Line Tracking Sensor Module
Description
Description
The TCRT5000 Single Channel Line Tracking Sensor Module is a reflective infrared sensor used to detect black and white surfaces. It’s perfect for building line-following robots, edge detection systems, or proximity-based automation. The sensor detects changes in surface color by measuring the reflection of infrared light – black absorbs IR and white reflects it.
Compact, affordable, and easy to use with Arduino and other microcontrollers, it’s a must-have for anyone working on smart robotic navigation.
✅ Key Features:
🔍 Detects black/white lines and surfaces
⚙️ High-sensitivity IR transmitter & receiver pair
📏 Adjustable detection threshold via potentiometer
💡 Output LED indicator for detection status
🔌 Easy 3-pin connection to microcontrollers
📐 Specifications:
ParameterDetailsSensor TypeIR Reflective Optical Sensor (TCRT5000)Operating Voltage3.3V – 5V DCOutput TypeDigital (High/Low)Detection Distance2 mm to 12 mm (adjustable)Comparator ChipLM393Interface3-pin (VCC, GND, D0)Sensitivity AdjustmentOnboard potentiometerLED IndicatorsPower (Green), Output (Red)Module Dimensions~32mm x 14mmMounting HolesYes
🚀 Applications:
Line-following robots
Surface color detection (black/white)
Edge detection for tables/paths
Smart cars and obstacle sensors
DIY automation and school projects
