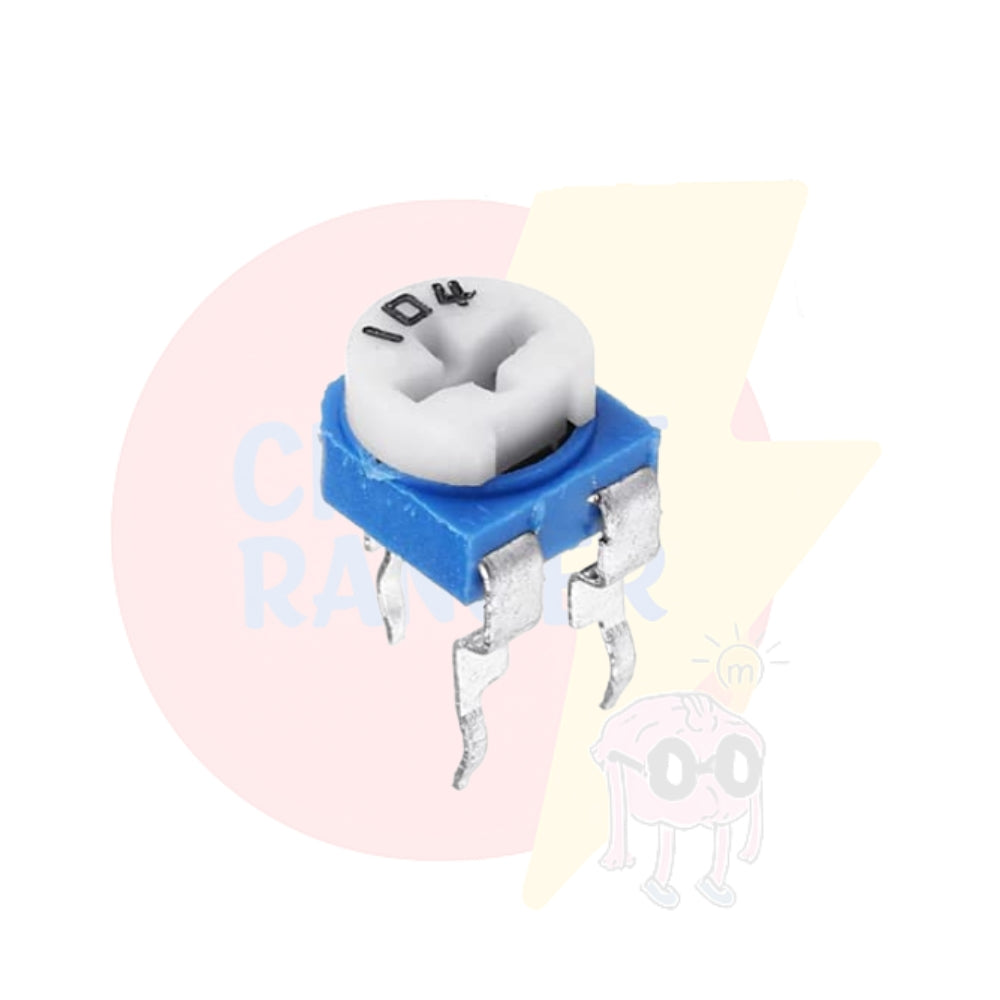

100K Trimpot

The 100K Ohm Trimpot is a versatile and compact variable resistor designed for fine-tuning voltage, signal sensitivity, and current levels in a wide range of electronic circuits. Ideal for use in Arduino, Raspberry Pi, and other microcontroller projects, this single-turn trimmer potentiometer allows for precise adjustments during prototyping or final calibration.

Its standard through-hole design makes it easy to mount on PCBs and breadboards, while the durable construction ensures long-lasting and stable performance in any application.

Product Specifications:

🔹 Resistance Value: 100K Ohm (100,000Ω)
🎛️ Type: Single-Turn Trimpot / Variable Resistor
🔌 Mount Type: Through-Hole (THT)
🪛 Adjustment Method: Top-slot (screwdriver adjustable)
⚡ Power Rating: 0.25W (250mW)
🎯 Tolerance: ±10%
📐 Form Factor: Standard 3296 or equivalent
📦 Package Includes: 1x 100K Ohm Trimpot

Key Features:

✅ Adjustable resistance up to 100K Ohms

✅ Accurate and stable resistance control

✅ Easy to use with breadboards and PCBs

✅ Suitable for analog tuning and calibration tasks

✅ Long operational life and high reliability

Applications:

🔧 Analog Signal Calibration

📟 Sensor Sensitivity Adjustment

🎚️ Voltage Divider & Gain Control Circuits

🧰 Arduino, IoT & Embedded Systems

📘 STEM Education & DIY Electronics Projects
