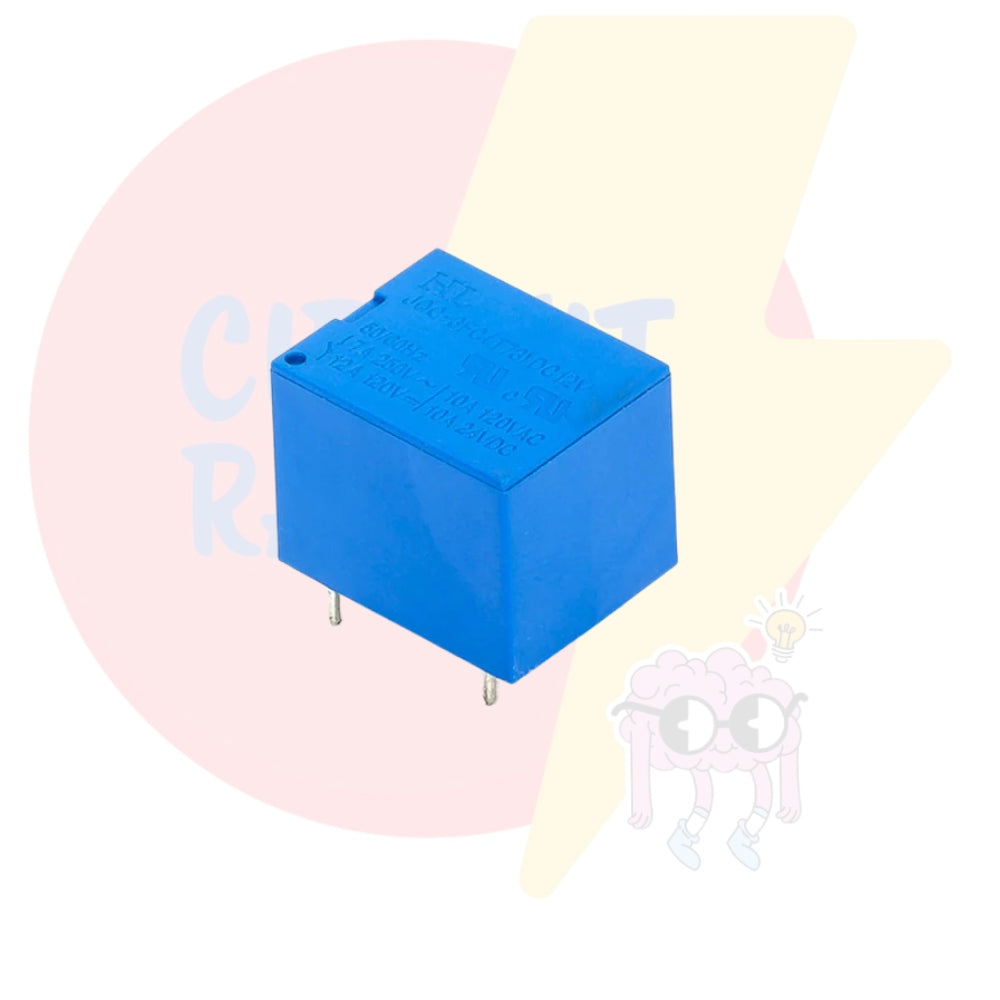

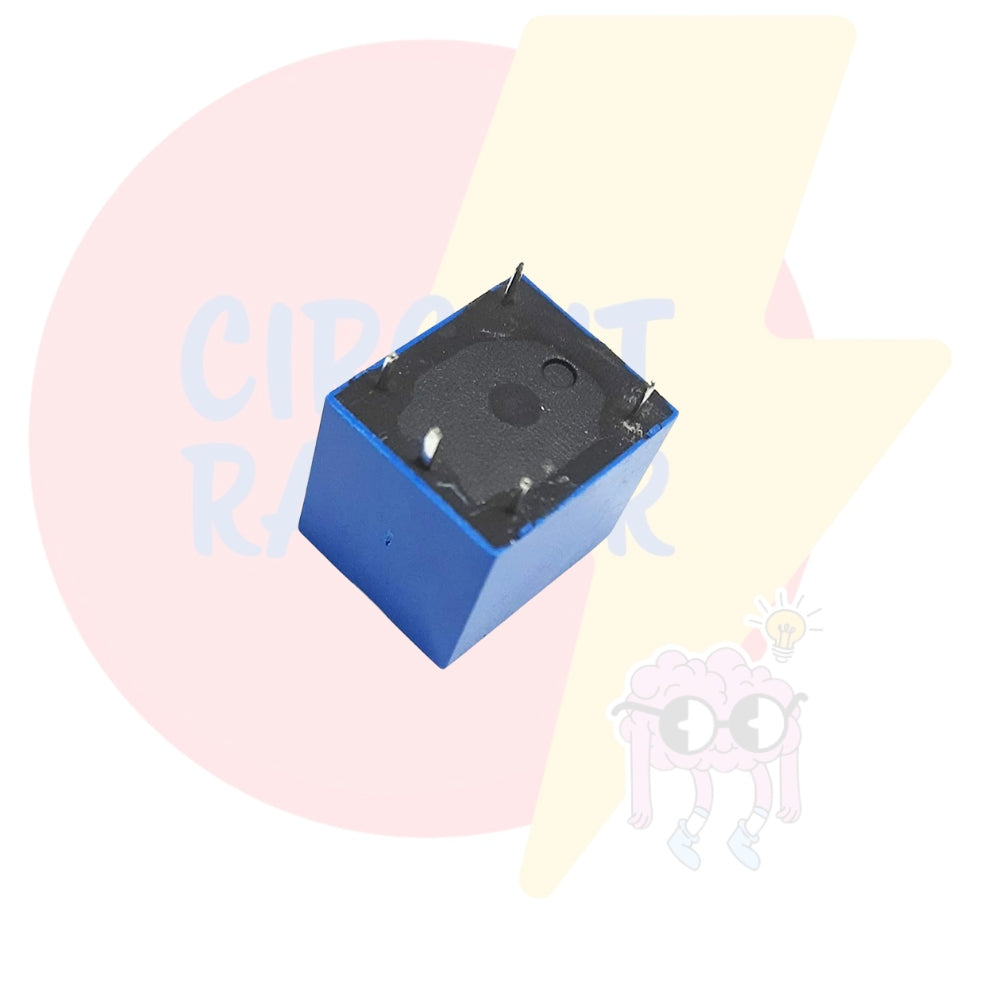

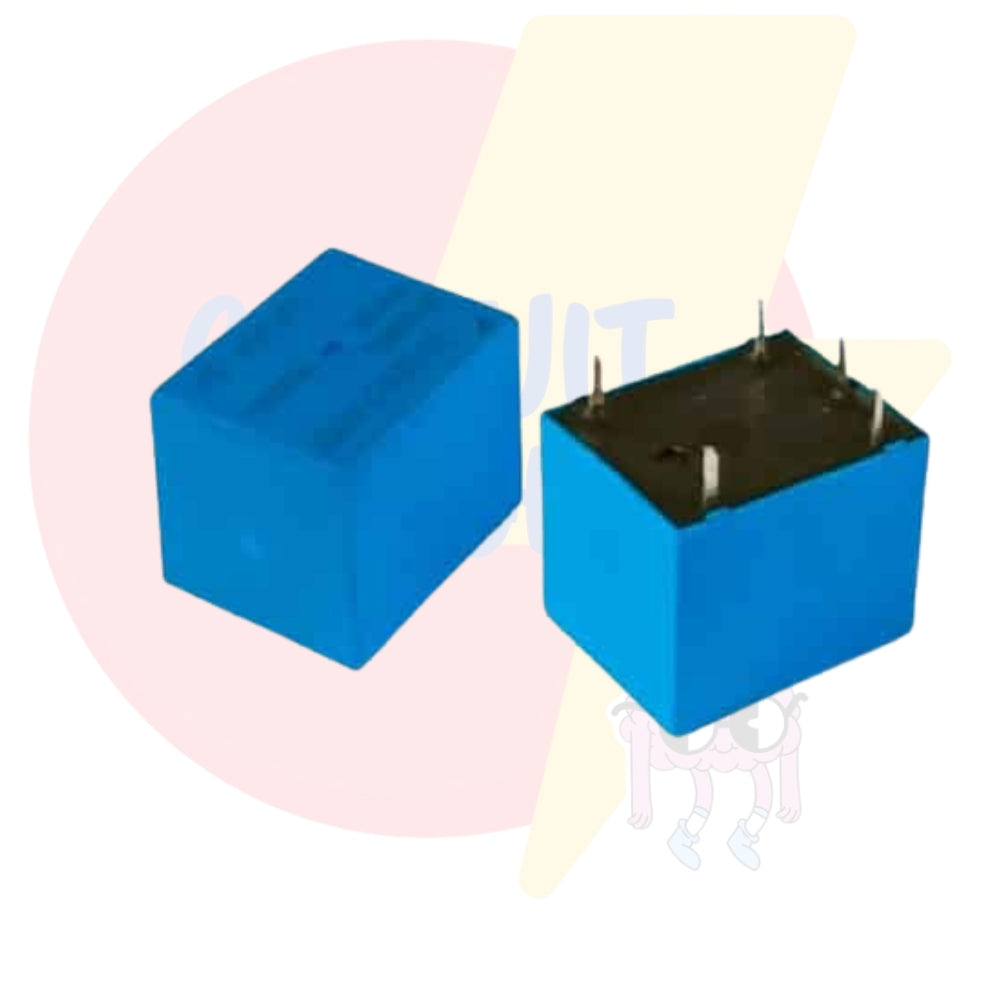

12V 7A SPDT Relay 5 Pin Sugar Cube PCB Mount

The 12V 7A SPDT Relay (5-Pin Sugar Cube Type) is a compact, high-performance electromechanical switch designed for automating circuits, controlling high voltage devices, and switching AC/DC loads using low-voltage microcontroller signals. With its Single Pole Double Throw (SPDT) configuration and 7A switching capacity, this relay is ideal for Arduino, Raspberry Pi, PLCs, home automation, automotive electronics, and industrial control systems.

Its standard 5-pin layout makes it easy to mount directly onto PCBs for compact and reliable integration in embedded applications.

Product Specifications:

🔹 Coil Voltage: 12V DC
🔌 Contact Type: SPDT (Single Pole Double Throw)
⚡ Switching Capacity: 7A @ 250V AC / 10A @ 125V AC / 7A @ 30V DC
📏 Pins: 5-Pin (PCB Mountable)
📐 Relay Type: Sugar Cube (Miniature)
⚙️ Mounting Type: Through-hole for PCB
🌡️ Operating Temperature: -40°C to +85°C
🧲 Contact Material: Silver Alloy
📦 Package Includes: 1x 12V 7A SPDT Relay (5-Pin)

Key Features:

✅ SPDT configuration – switch between two outputs

✅ 7A current handling – suitable for medium load switching

✅ Compact sugar cube size – space-saving on PCBs

✅ 5-pin layout – easy to use in DIY and embedded circuits

✅ Ideal for automation, control panels, and logic switching

Applications:

🏠 Home Automation Systems

🚗 Automotive Electronics & Relays

⚡ Power Switching & Load Control

🔧 DIY Electronics & Arduino Projects

🏭 Industrial Control Equipment
