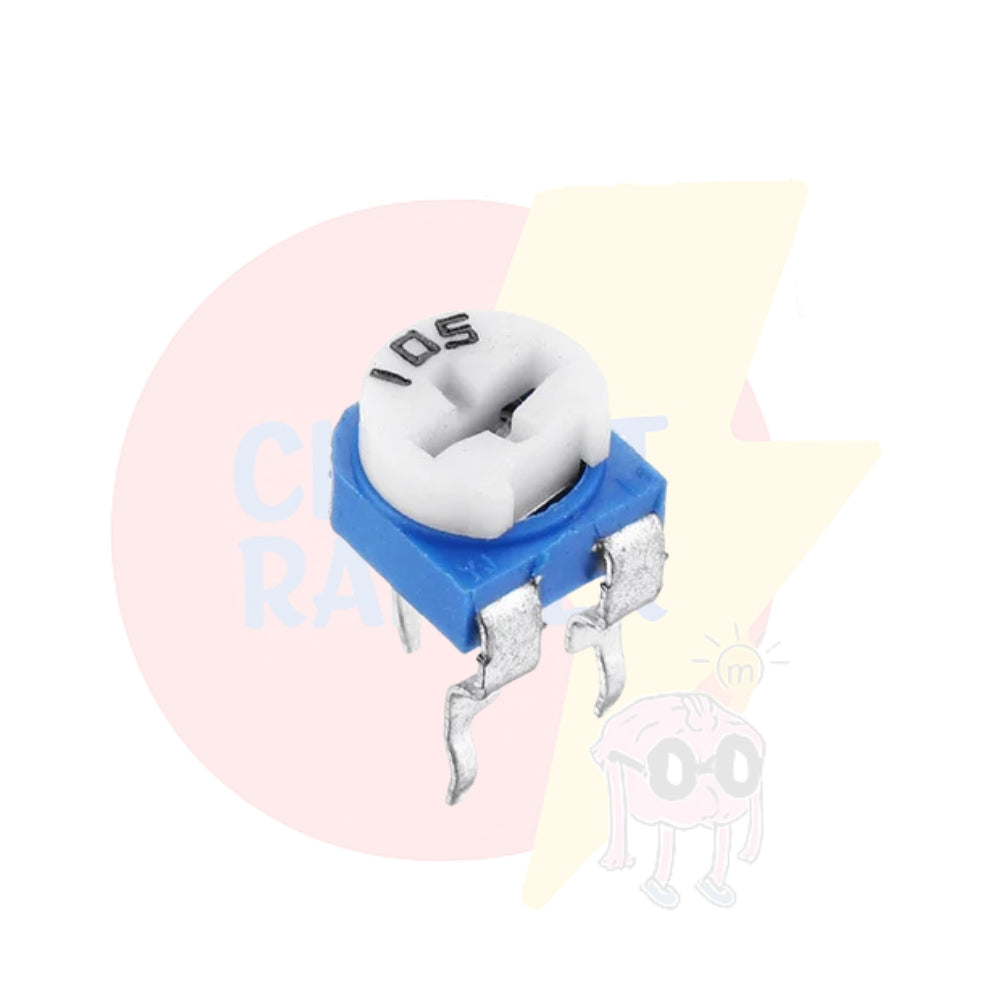

1M Trimpot

Fine-tune your electronic circuits with the 1M Ohm Trimpot (Trimmer Potentiometer) – a compact, adjustable resistor ideal for calibration, signal tuning, voltage adjustment, and sensitivity control. This variable resistor allows you to precisely set resistance values in your circuits, making it essential for Arduino, analog sensor modules, amplifiers, and DIY electronics projects.

Designed for through-hole PCB mounting, the 1M trimpot is easy to install, durable, and perfect for both prototyping and permanent circuit applications.

Product Specifications:

🔹 Resistance Value: 1 Mega Ohm (1MΩ)
🎚️ Type: Single-turn Trimpot / Variable Resistor
📏 Mount Type: Through-hole
🔧 Adjustment Type: Top-slot (can be adjusted using a small screwdriver)
💡 Power Rating: 0.25W (250mW)
⚡ Tolerance: ±10%
📐 Dimensions: Standard 3296 or equivalent form factor
📦 Package Includes: 1x 1M Ohm Trimpot

Key Features:

✅ Allows fine-tuning of resistance up to 1MΩ

✅ Compact, single-turn adjustment design

✅ Easy installation on PCBs and breadboards

✅ Ideal for calibration and sensitivity settings

✅ Long-lasting and stable performance

Applications:

🔧 Voltage Divider Circuits

📟 LCD Contrast Adjustment

🎛️ Sensor Calibration & Signal Conditioning

🧰 DIY Electronics & Prototyping

📘 Educational & STEM Projects
