1N4007 Diodes

The 1N4007 Diode is a widely used general-purpose rectifier ideal for AC to DC conversion, reverse polarity protection, voltage blocking, and rectifier circuits. With a high reverse voltage rating of 1000V and a continuous forward current capacity of 1A, the 1N4007 is perfect for use in power supplies, adapters, chargers, and electronic appliances.

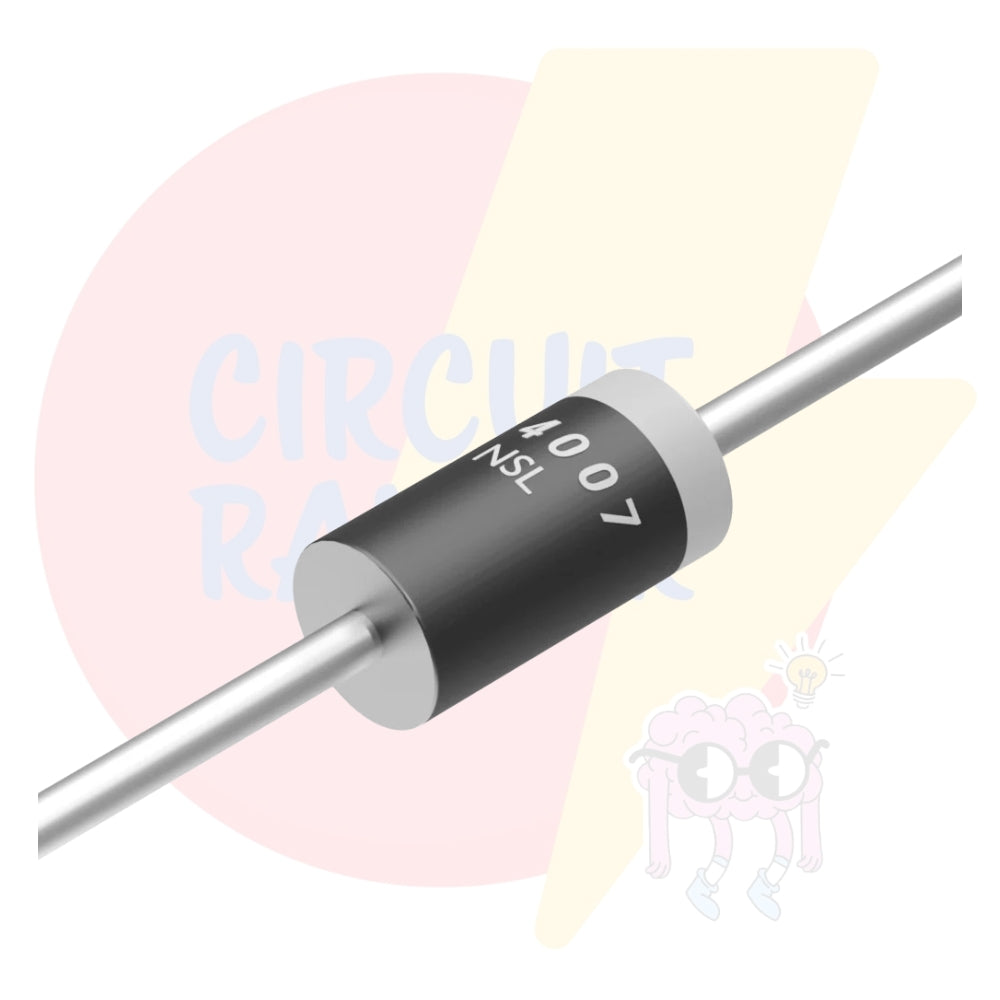

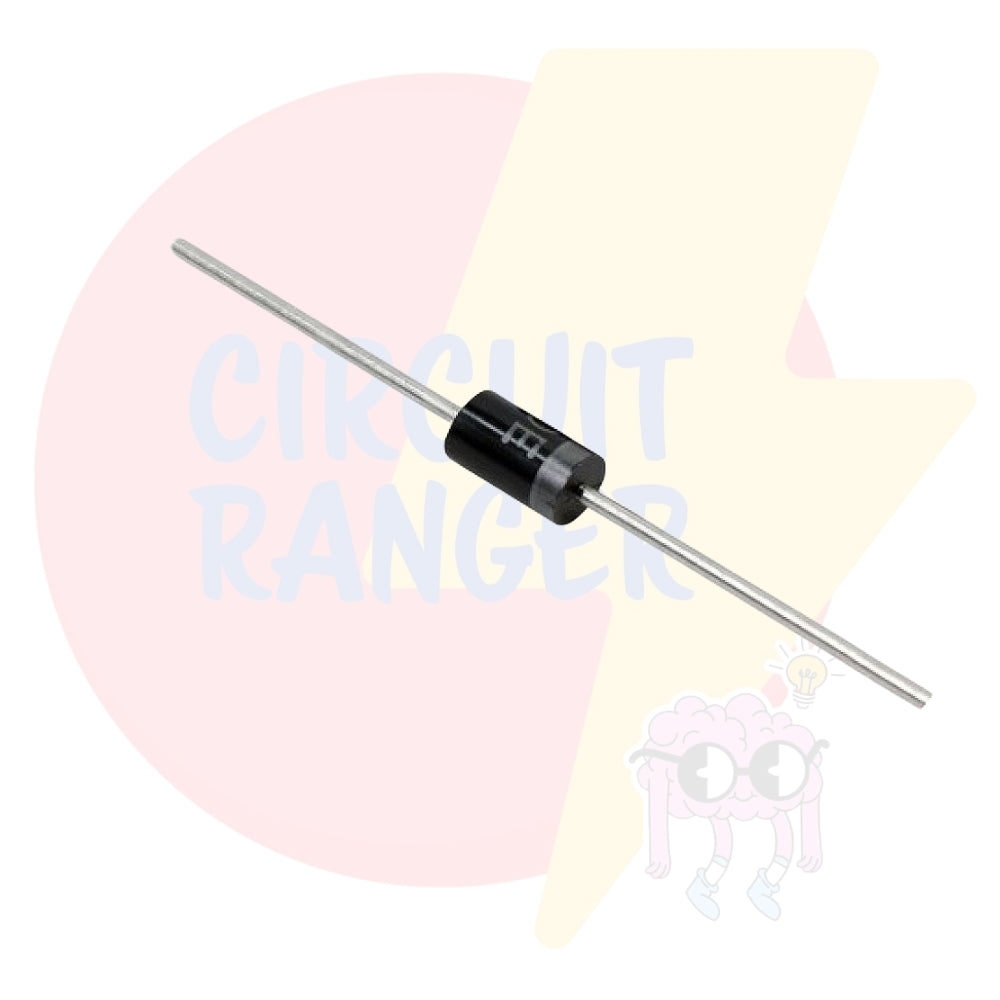

Encased in a DO-41 plastic package, this diode is known for its durability, reliability, and versatility in both DIY and industrial-grade electronic applications.

Product Specifications:

🔹 Diode Type: General Purpose Rectifier
🔌 Part Number: 1N4007
⚡ Maximum Repetitive Reverse Voltage (VRRM): 1000V
🔋 Average Forward Current (IF): 1A continuous
💡 Peak Surge Current (IFSM): 30A (8.3ms single half sine-wave)
🔧 Forward Voltage Drop (VF): ~1.1V at 1A
🌡️ Operating Temperature Range: -55°C to +150°C
📦 Package Type: DO-41 Axial
📐 Dimensions: Body ~5.2mm × 2.7mm
📦 Package Includes: 1x 1N4007 Diode

Key Features:

✅ High voltage blocking capability (up to 1000V)

✅ Handles up to 1A continuous current

✅ Robust and thermally stable design

✅ Ideal for full-wave and half-wave rectification

✅ Easy to use in breadboards and PCBs

Applications:

🔌 AC to DC Power Conversion

⚡ Reverse Voltage & Surge Protection

🔄 Bridge Rectifier Circuits

🔋 Power Supply Units (PSUs)

🧰 DIY Electronics, Adapters & Chargers
