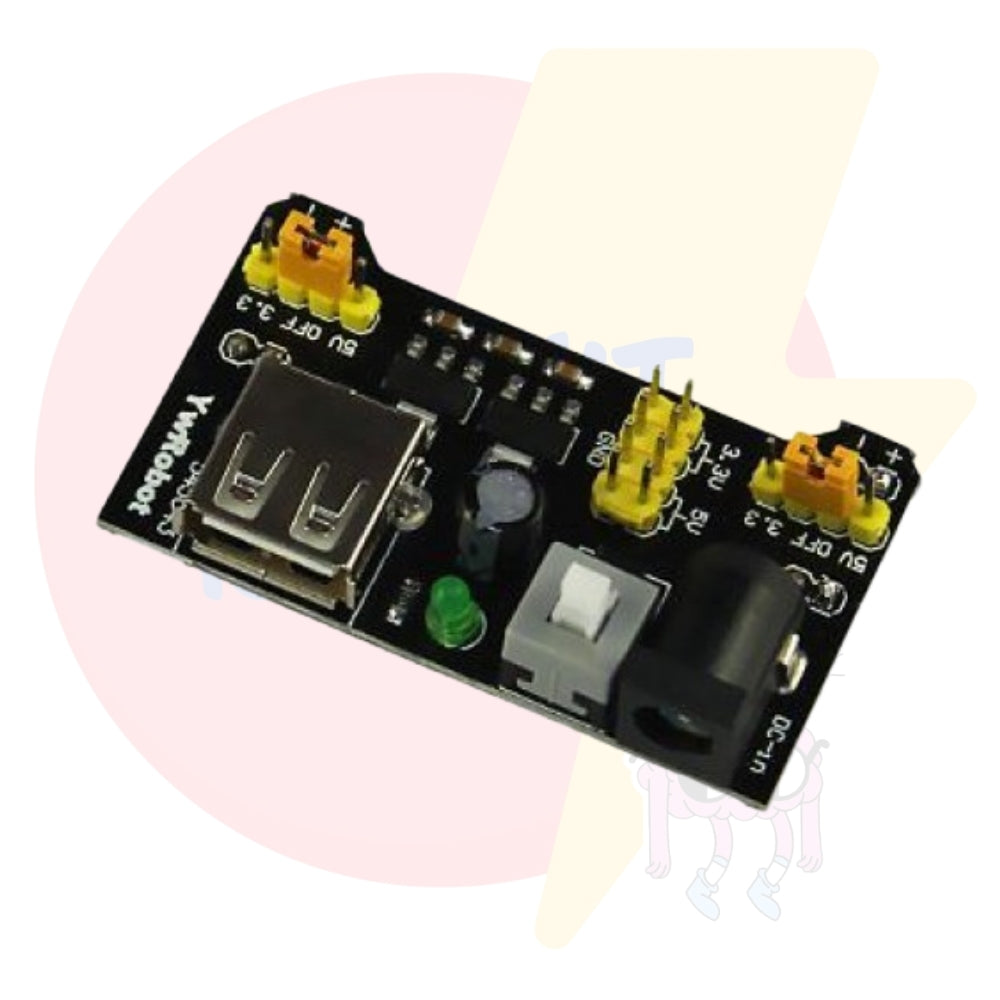

3.3V/5V MB102 Breadboard Power Supply Module

Product Description:
Power your electronics projects effortlessly with the MB102 Breadboard Power Supply Module, designed to fit perfectly on standard MB102 breadboards. This compact module delivers regulated 3.3V and 5V outputs, making it ideal for a wide range of Arduino, ESP32, Raspberry Pi, and other microcontroller projects.

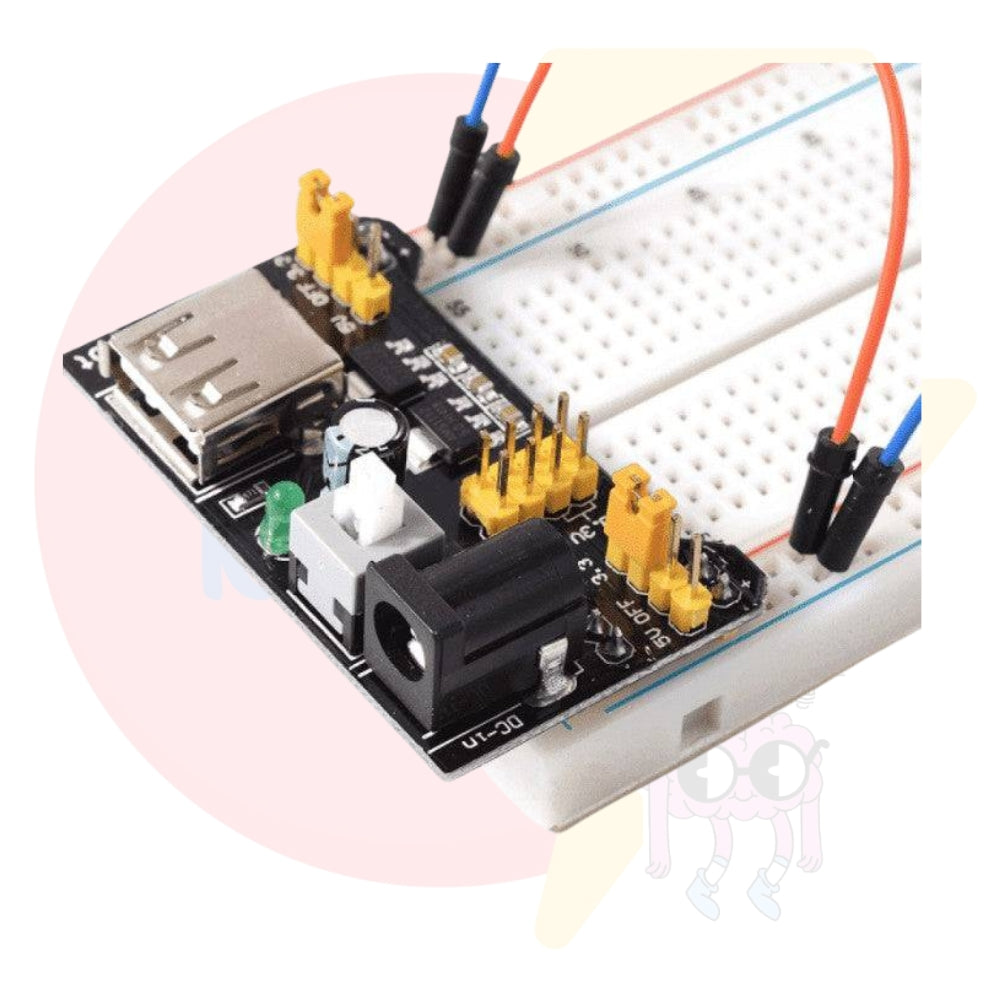

Simply plug it into your breadboard, connect a DC barrel jack or USB power, and get dual voltage rails instantly for sensors, modules, and circuit components. With onboard ON/OFF switches and dual voltage selection jumpers, the MB102 module brings both convenience and flexibility to your prototyping setup.

Product Specifications:

🔌 Input Voltage: 6.5V – 12V (via DC barrel jack) or 5V (via USB)
⚡ Output Voltages: Selectable 3.3V and 5V on both rails
🔧 Output Current: Up to 700mA (per rail, depending on input)
🔋 Voltage Regulator ICs: AMS1117 (3.3V and 5V versions)

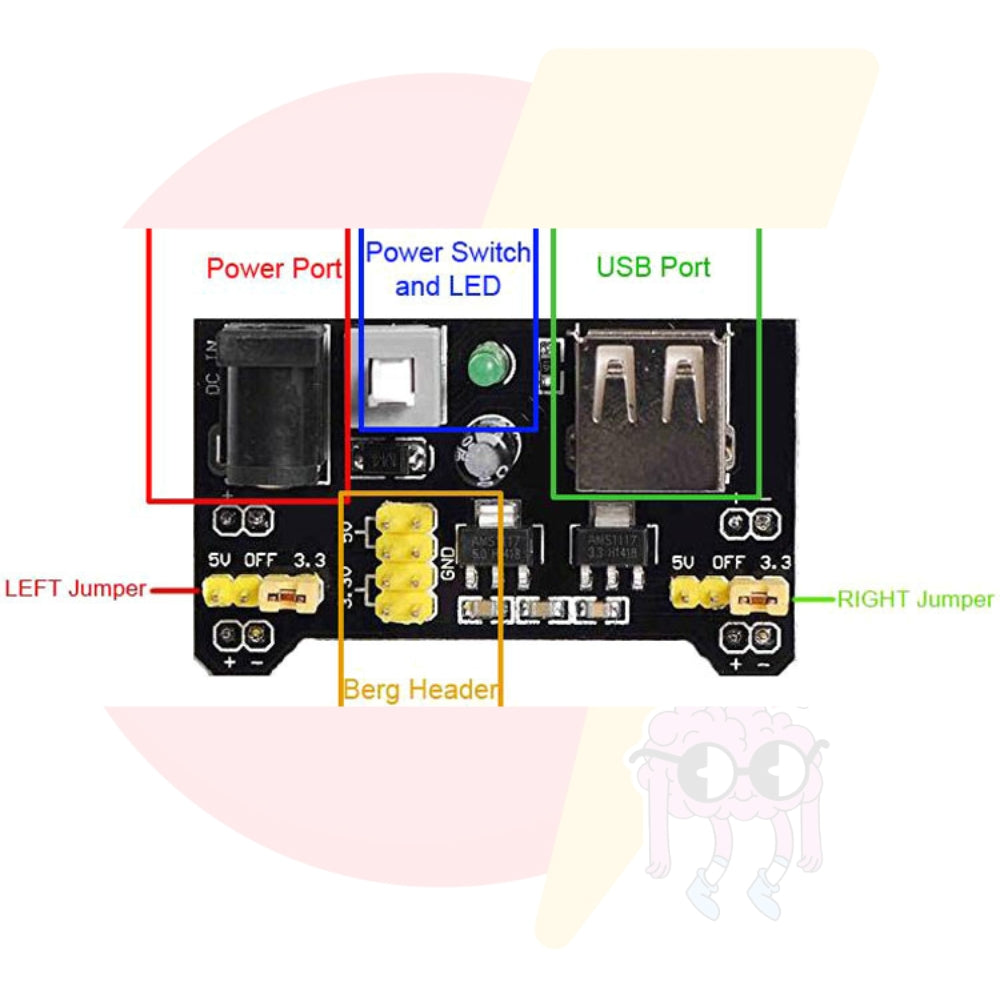

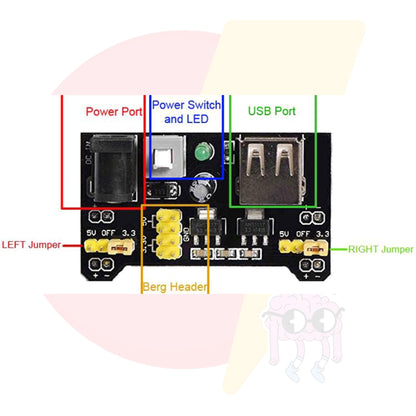

🔗 Input Interfaces:

DC Jack (2.1mm center-positive)

USB Type-A (power only)

📎 Compatibility: Standard MB102 Breadboards
🎛️ Switches:

Power ON/OFF switch

Voltage select jumpers for each power rail
📦 Package Includes: 1x MB102 Power Supply Module

Key Features:

✅ Provides regulated 3.3V and 5V outputs

✅ Dual power rails with individual voltage selection

✅ Plug-and-play design for standard breadboards

✅ Input via DC barrel jack or USB port

✅ Ideal for microcontroller and sensor-based circuits

✅ Built-in ON/OFF switch for convenient power control

Applications:

🧪 Breadboard-Based Prototyping

🤖 Arduino & Raspberry Pi Projects

🌐 IoT & Sensor Circuits

🧰 DIY Electronics & Educational Kits

🔌 Embedded Systems Development
