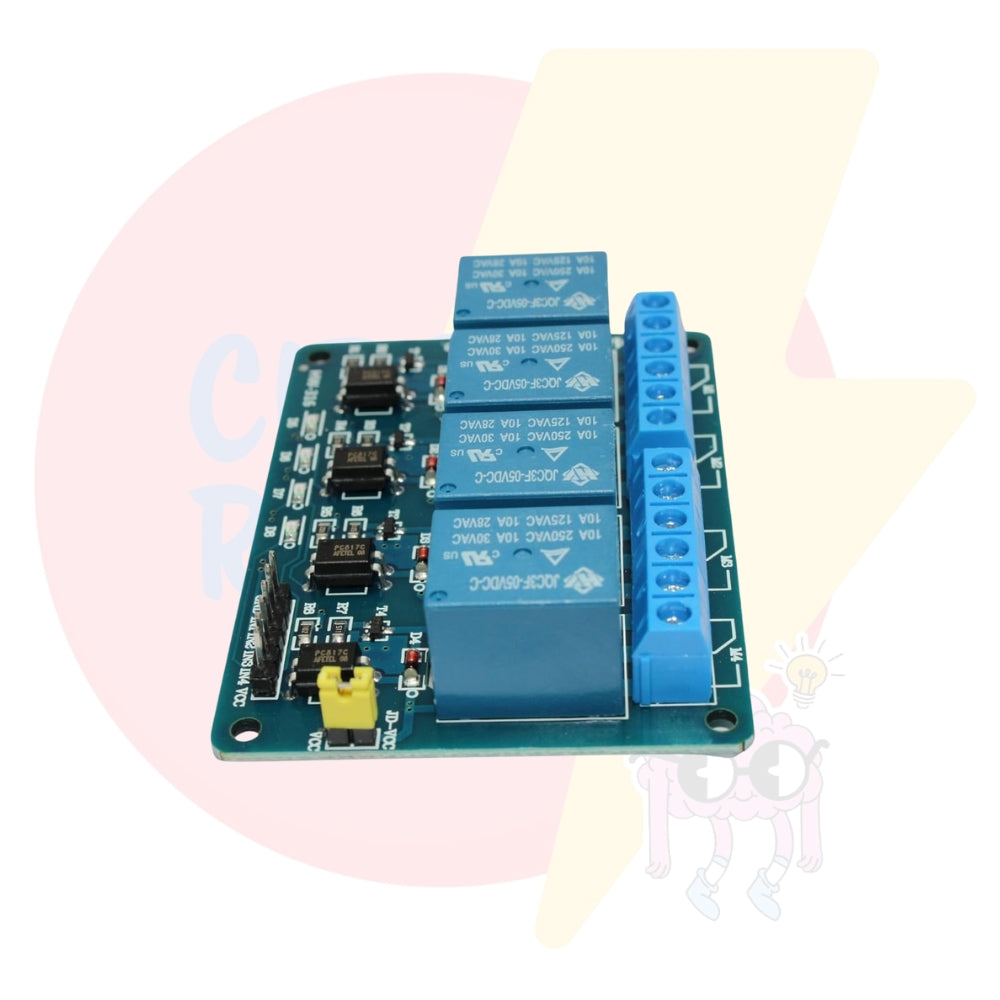

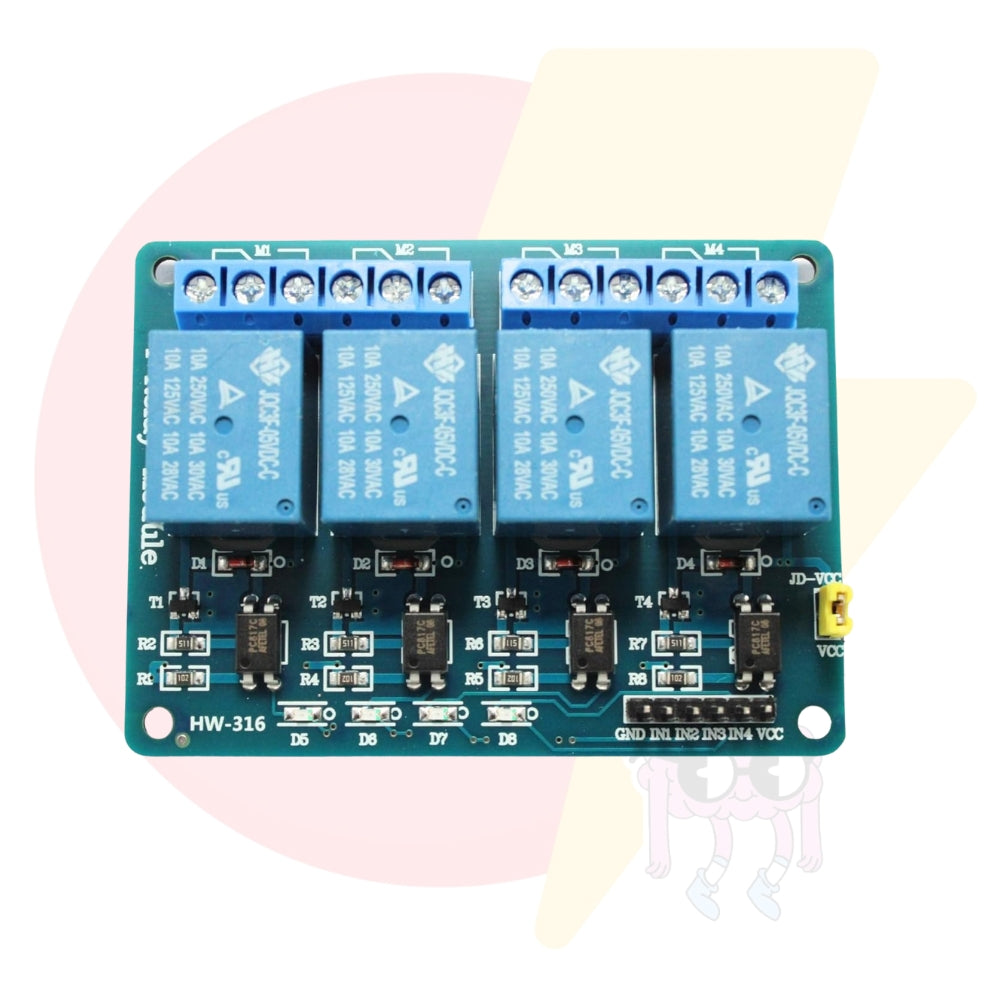

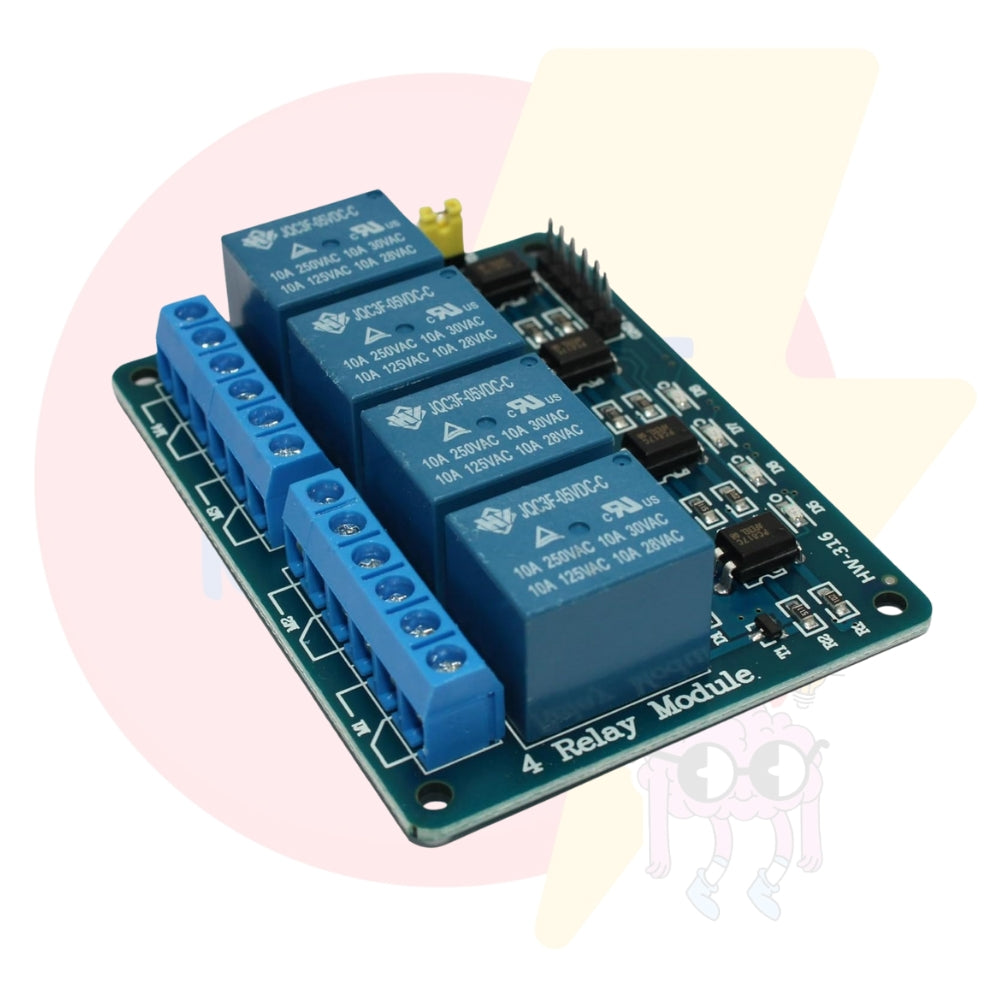

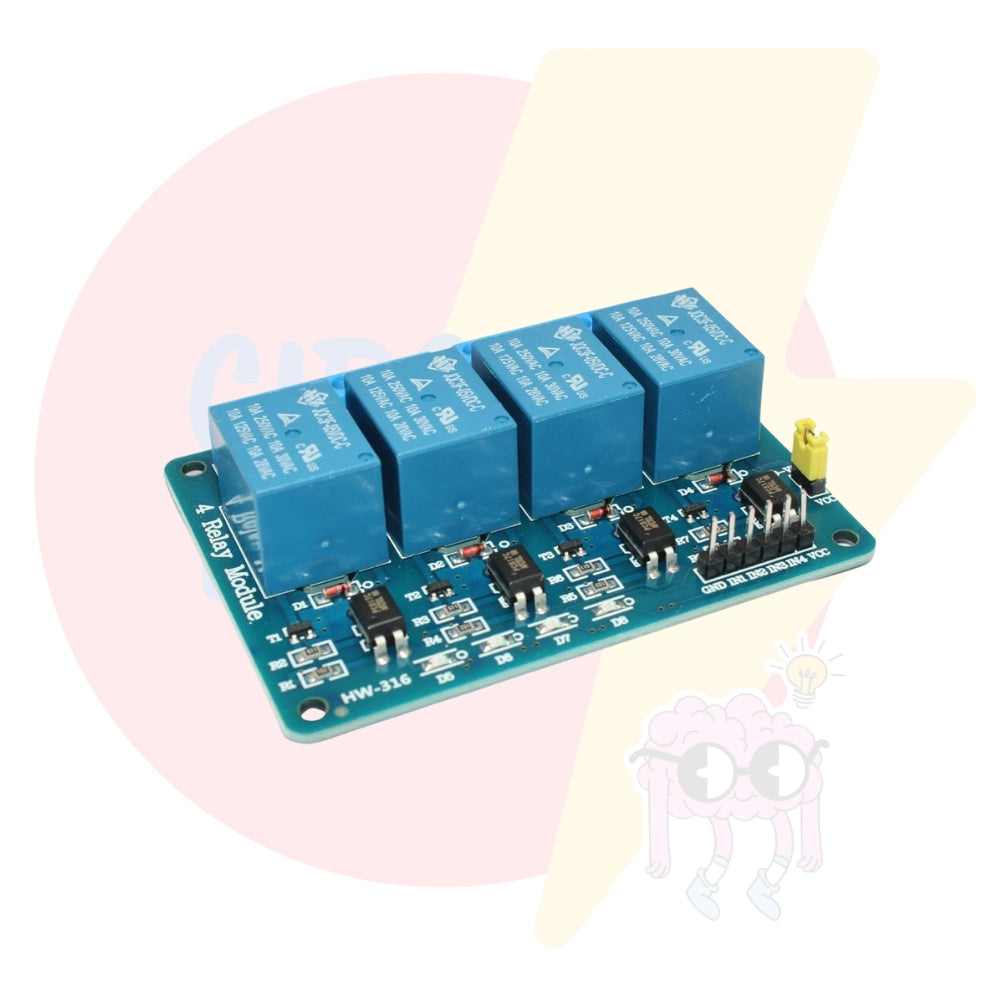

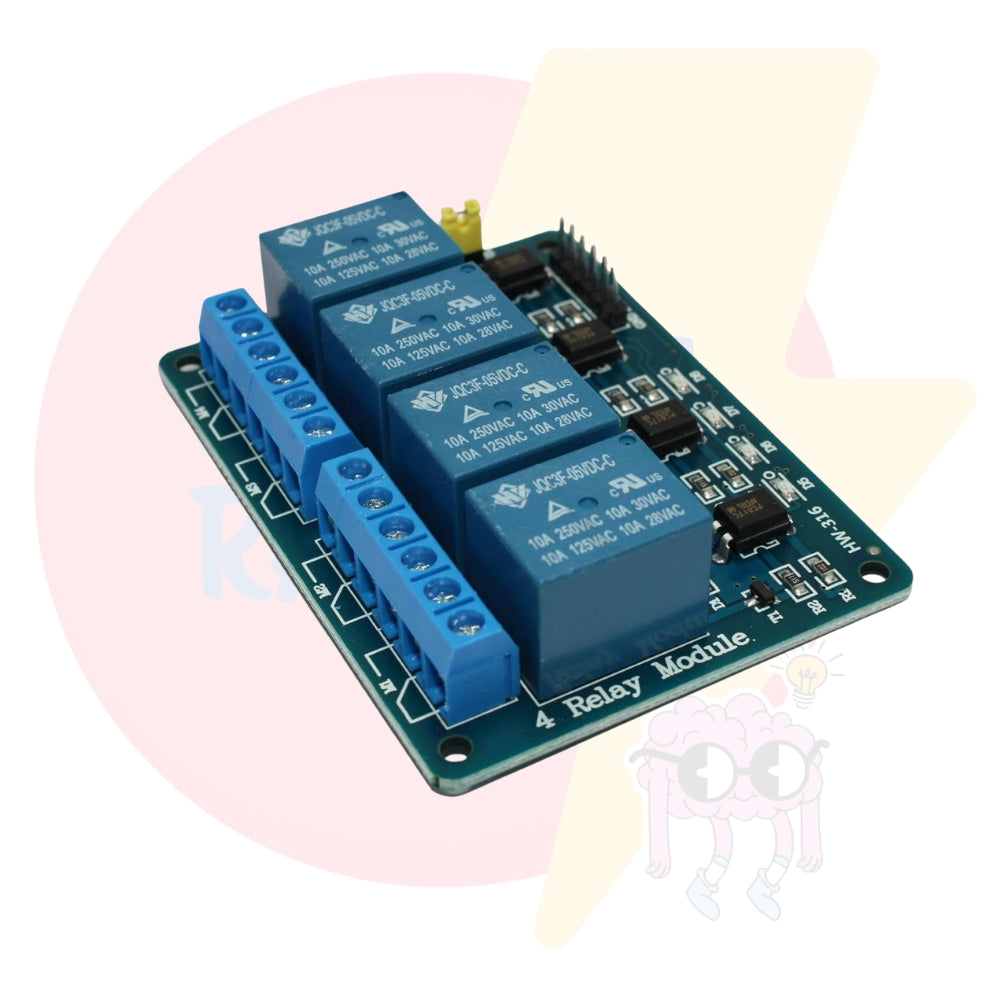

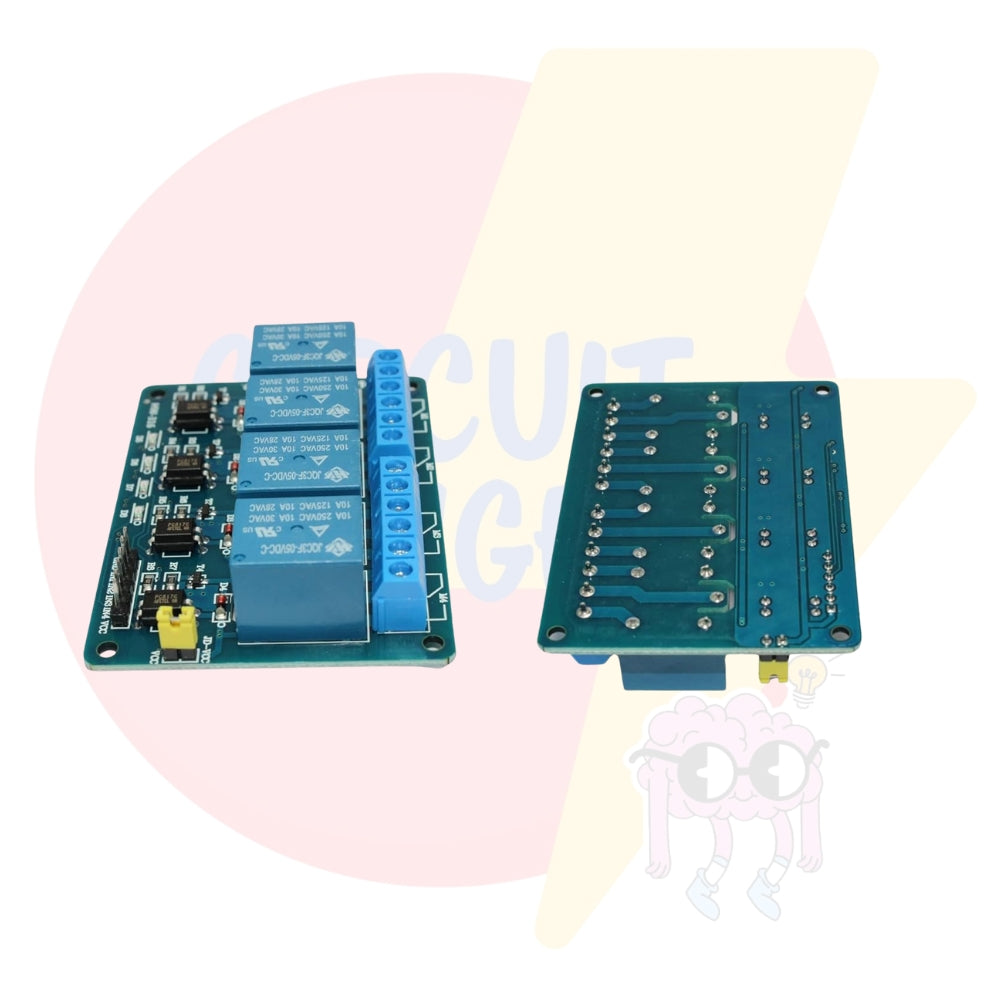

5V 4 Channel Relay Module

Product Description:
Control high-voltage devices with ease using this 4-Channel Relay Module, a powerful switching board designed for microcontrollers like Arduino, ESP32, Raspberry Pi, and other digital logic systems. Each channel can control AC or DC devices such as lights, fans, pumps, motors, or appliances—making it perfect for home automation, robotics, and IoT applications.

Equipped with opto-isolators for safety and LED indicators for status monitoring, this relay module allows you to switch loads up to 250V AC or 30V DC with just 5V logic input.

Product Specifications:

🔌 Channels: 4 Independent Relay Channels
⚡ Operating Voltage: 5V DC
🔋 Trigger Voltage: 3.3V – 5V (compatible with most microcontrollers)
🔀 Relay Type: SPDT (Single Pole Double Throw)
🔧 Relay Rating (per channel):

10A @ 250V AC

10A @ 30V DC
📎 Isolation: Opto-isolated inputs for safety
💡 Indicators: LED for each relay (ON/OFF status)
📏 Board Size: Approx. 7.3cm x 5cm x 2cm
📦 Package Includes: 1x 4-Channel 5V Relay Module

Key Features:

✅ Control AC or DC devices from microcontrollers

✅ Opto-isolated for protection from high-voltage spikes

✅ Works with Arduino, ESP8266, ESP32, Raspberry Pi & more

✅ LED indicators show relay status at a glance

✅ Screw terminals for secure and easy connections

✅ Pre-soldered headers for quick interfacing

Applications:

🏠 Home & Industrial Automation

🚿 Smart Lighting & Appliance Control

🤖 Robotics & Motor Control

🔌 Power Management Systems

📘 STEM Education & DIY Electronics Projects
