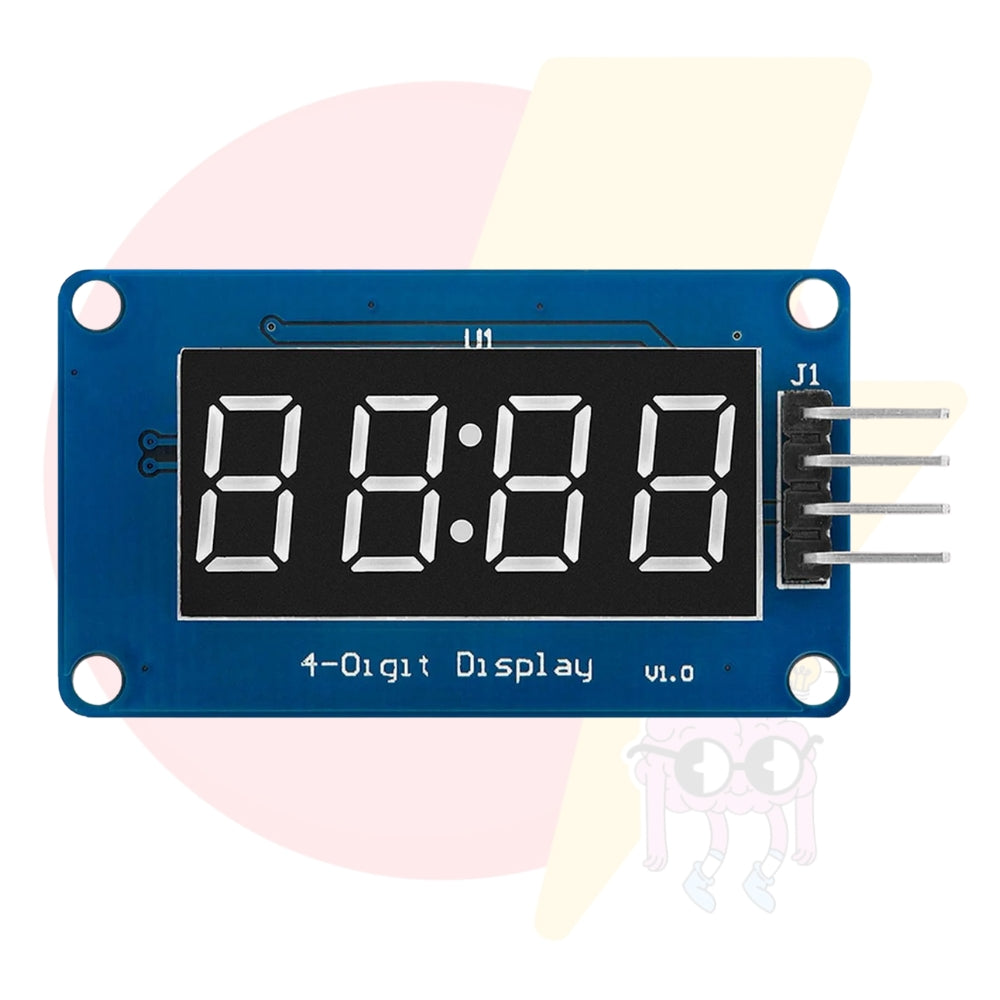

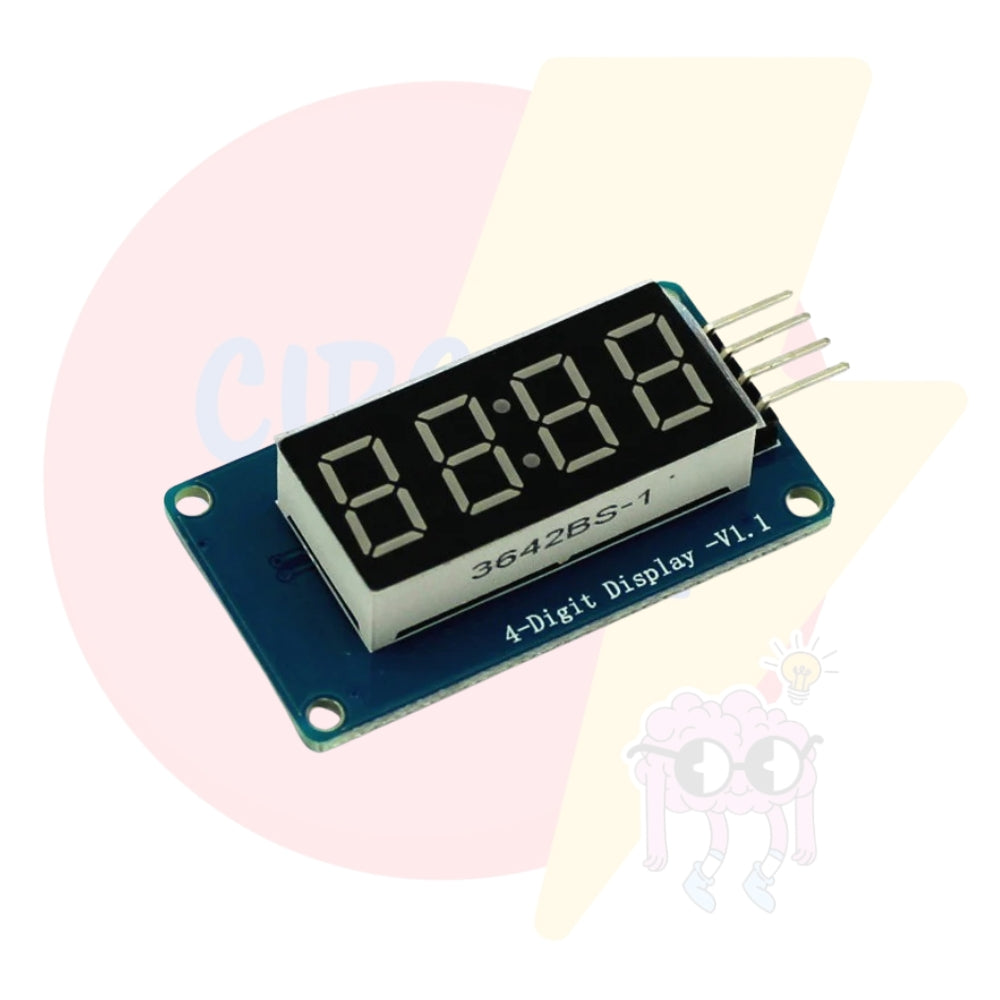

TM1637 4 Digit 7 Segment LED Display

Product Description:
Display numbers, time, counters, and more with this 4-Digit 7-Segment LED Display Module – a versatile and compact numeric display ideal for Arduino, Raspberry Pi, ESP32, and microcontroller-based applications. Featuring 4 digits with 7 segments each, plus a decimal point per digit, this module is perfect for showing values such as temperature, timer countdowns, sensor data, or digital clocks.

Built with bright red LEDs and a common cathode configuration, the module offers excellent visibility and easy interfacing using shift registers or display driver ICs like TM1637 or MAX7219.

Product Specifications:

🔢 Display Type: 4-Digit 7-Segment LED
🔌 Pin Configuration: 12 Pins (Standard pinout)
🔁 Configuration: Common Cathode
📏 Digit Height: Approx. 0.36" (9.14mm)
🔴 LED Color: Red
⚡ Forward Voltage: 1.8V – 2.2V per segment
🔋 Current per Segment: 5mA – 20mA
📐 Dimensions: Approx. 40mm x 25mm x 10mm
📦 Package Includes: 1x 4-Digit 7-Segment Display Module

Key Features:

✅ Displays numeric values (0–9) and select characters

✅ 4-digit layout – ideal for timers, clocks, and counters

✅ Bright red segments with high visibility

✅ Breadboard and PCB-friendly 12-pin design

✅ Easy to interface with Arduino using shift registers or drivers

✅ Durable and long-lasting performance

Applications:

⏱️ Digital Clocks & Timers

📟 Temperature, Voltage, or Sensor Display

🎮 Scoreboards & Game Counters

🔧 Arduino & Microcontroller Projects

📘 Educational & STEM Kits
