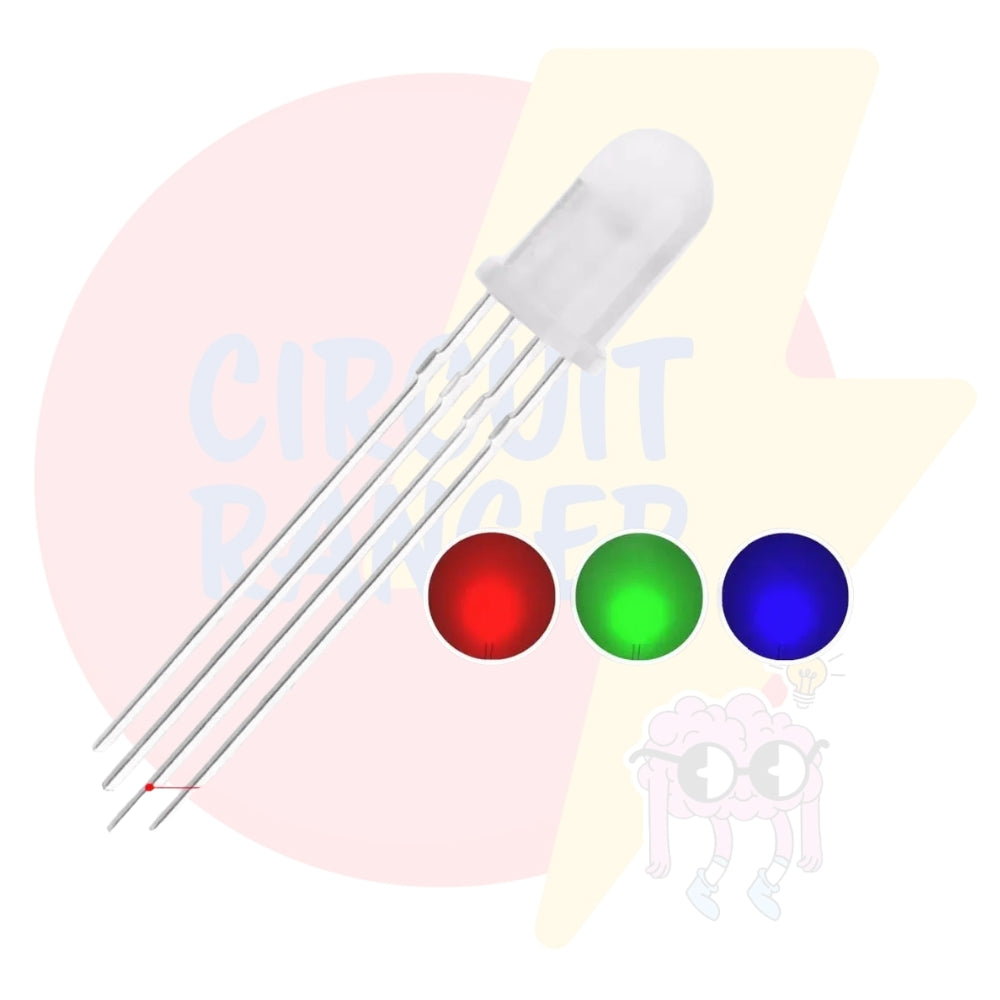

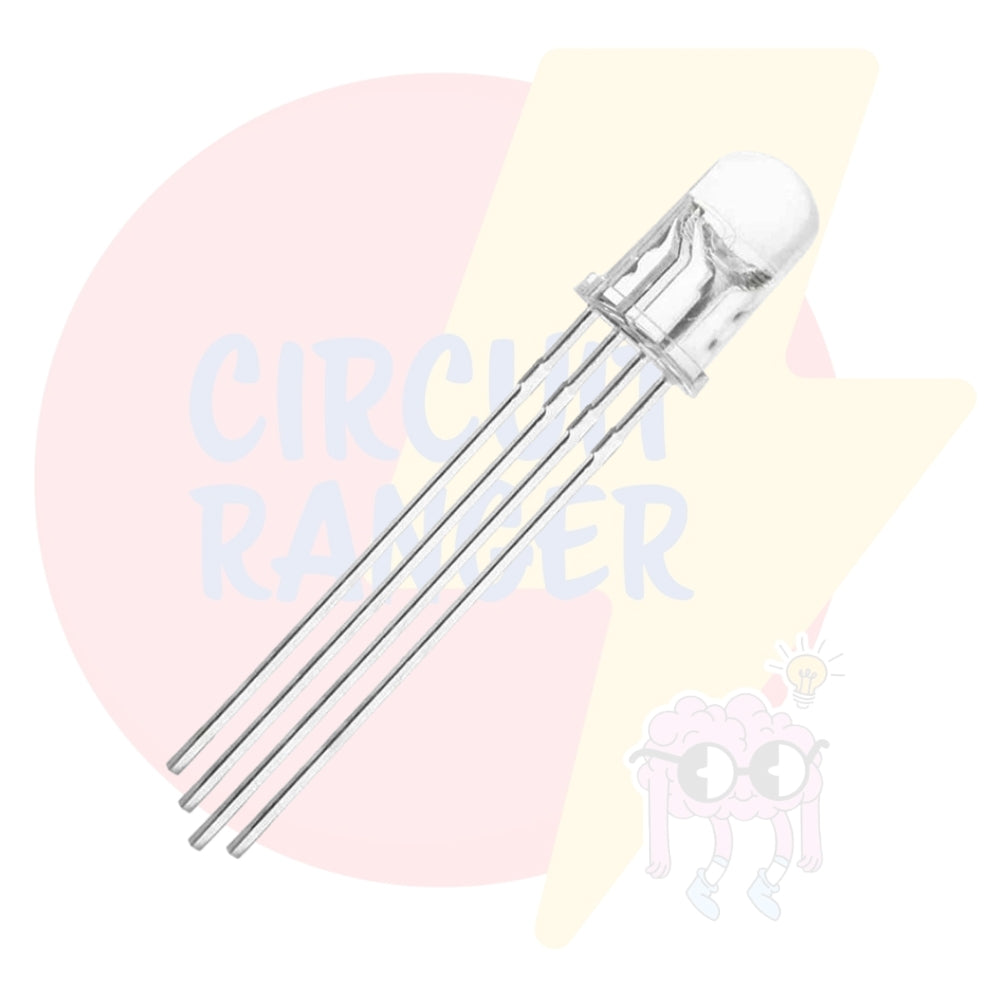

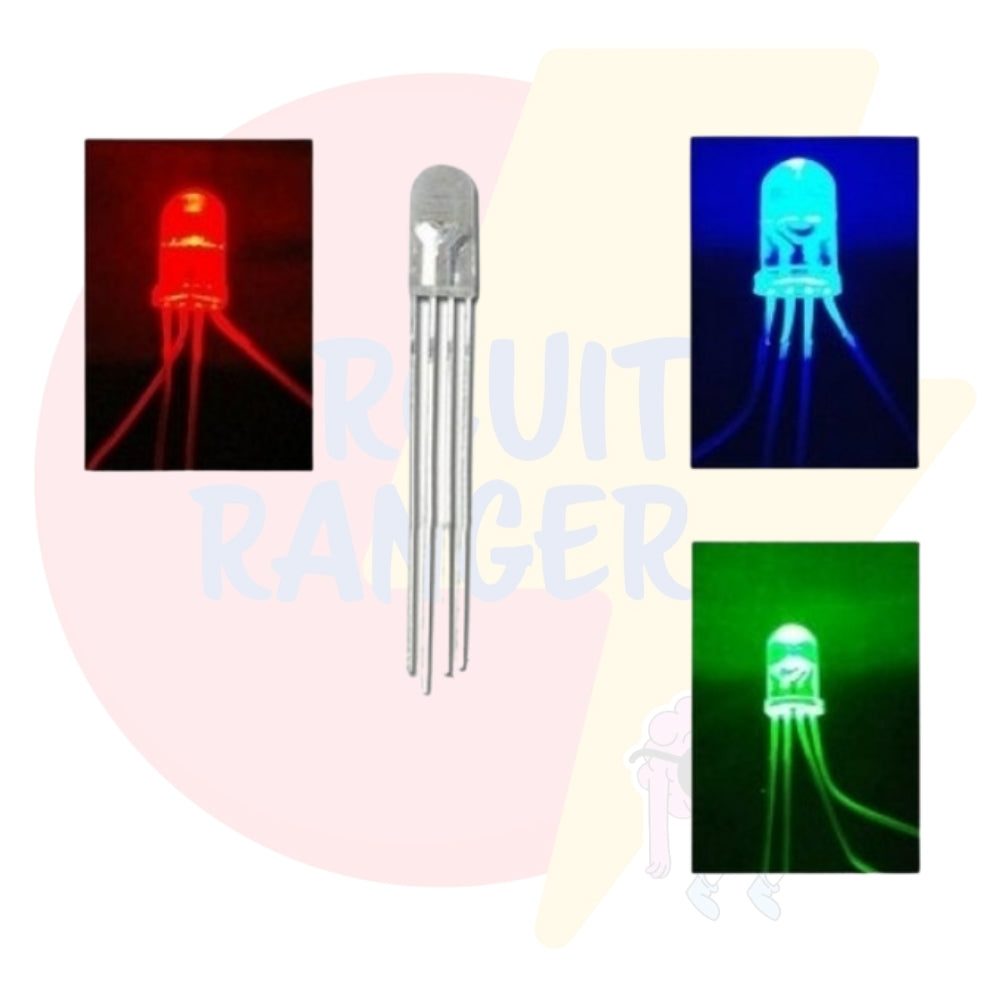

5mm RGB Led Common Anode

Product Description:
Create stunning lighting effects with the 5mm RGB LED (Common Anode) – a versatile light-emitting diode that combines Red, Green, and Blue LEDs into a single 5mm clear epoxy package. This RGB LED allows you to mix colors by adjusting the current to each color channel, enabling you to produce millions of color combinations for your Arduino, Raspberry Pi, or custom electronics projects.

With a common anode configuration, this LED is perfect for projects that require easy PWM control for smooth color transitions and custom lighting effects.

Product Specifications:

🔹 LED Type: 5mm RGB LED (Common Anode)
🔌 Configuration: 4-Pin (1 Common Anode, 3 Cathodes – R, G, B)
💡 Color Output: Red, Green, Blue (mixable for multicolor output)
⚡ Forward Voltage:

Red: 1.8V – 2.2V

Green: 3.0V – 3.2V

Blue: 3.0V – 3.2V
🔋 Forward Current: 20mA (typical per color)
📏 Lens Size: 5mm (Clear Lens)
📦 Package Includes: 1x 5mm RGB LED (Common Anode)

Key Features:

✅ Emits Red, Green, and Blue – customizable color mixing

✅ Common anode configuration for easy control with microcontrollers

✅ Compact 5mm size – fits breadboards and PCBs easily

✅ Clear lens for bright and focused light output

✅ Long-lasting and energy-efficient performance

Applications:

🎨 DIY Lighting Effects & Mood Lamps

🤖 Arduino & Raspberry Pi Projects

📟 Visual Indicators & Displays

💡 RGB Backlighting & Color Mixing

📘 STEM Education & Electronics Learning
