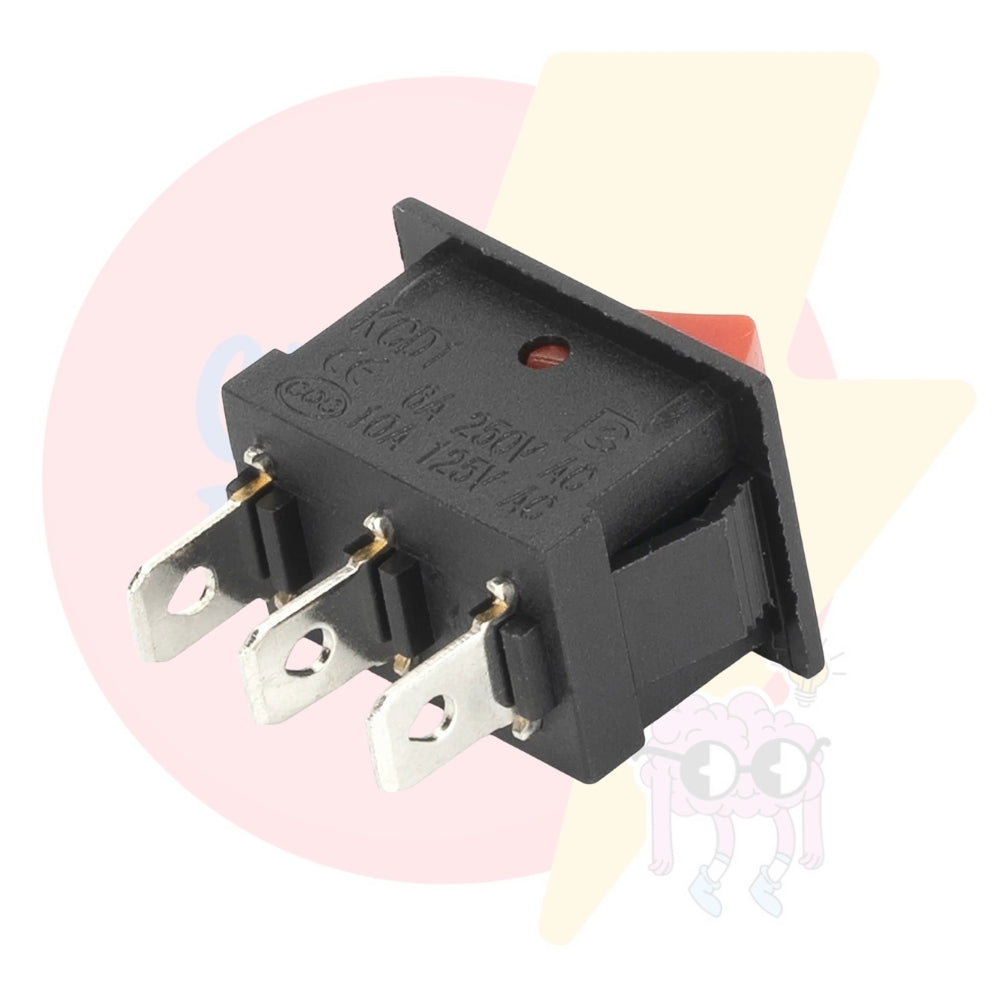

6A 250V DPDT Rocker Switch (Lock Action)

Product Description:
Upgrade your control panels and DIY electronics with the 6A 250V DPDT Rocker Switch (Lock Action) – a compact and reliable switch designed for handling AC and DC power lines. Featuring a Double Pole Double Throw (DPDT) configuration, this switch enables two separate circuits to be connected or disconnected simultaneously, making it ideal for reversing motors, switching between power sources, or toggling between circuit functions.

The locking action ensures the switch remains securely in the selected position until manually changed, offering increased safety and operational stability in your electrical designs.

Product Specifications:

🔌 Switch Type: Rocker Switch (DPDT – Double Pole Double Throw)
⚡ Current Rating: 6A @ 250V AC
🔋 Voltage Rating: 6A @ 250V AC / 10A @ 125V AC

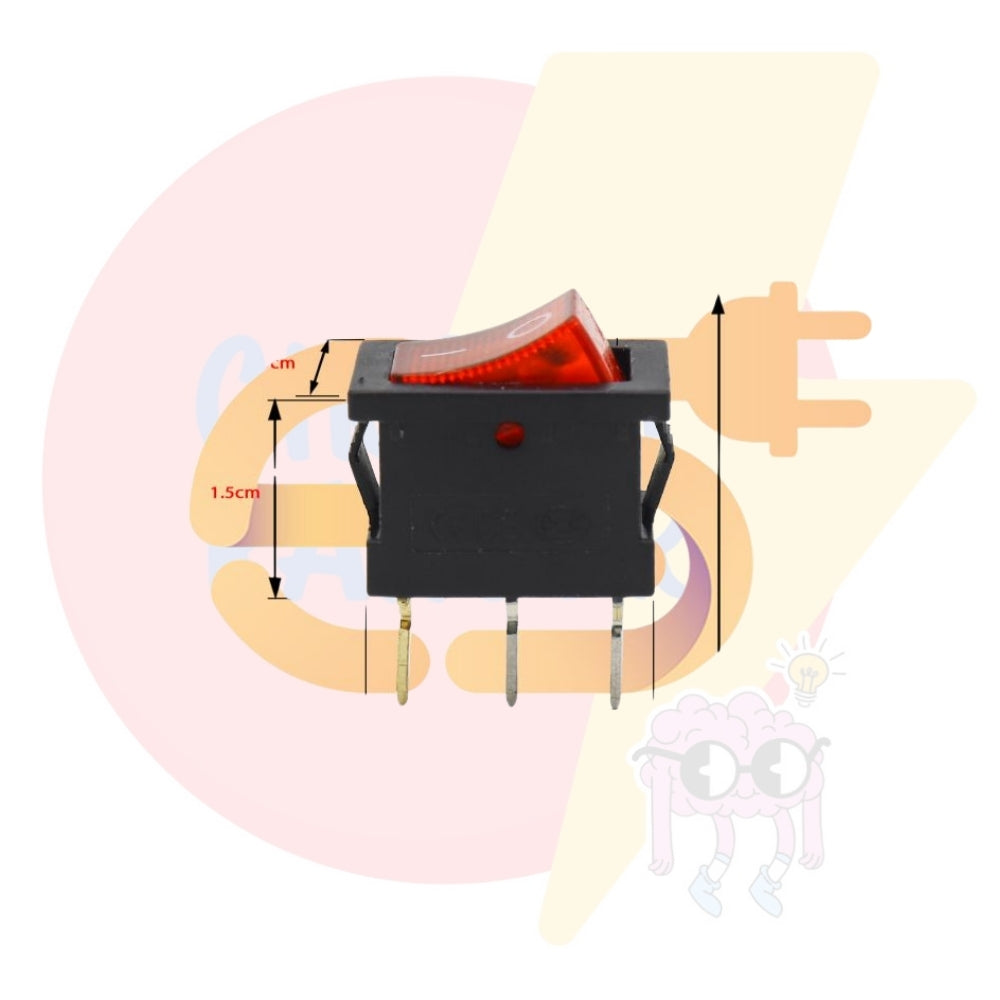

📏 Mounting Hole Size: Approx. 22mm x 19mm
📎 Contact Type: 6-Pin (2 poles, 2 throws)
🔒 Switch Action: Locking (Maintains state until toggled)
🧱 Material: Durable plastic housing with copper terminals
📦 Package Includes: 1x DPDT Rocker Switch (Lock Action)

Key Features:

✅ DPDT configuration – control two independent circuits

✅ Locking action for stable ON/OFF control

✅ High current rating – suitable for AC and DC loads

✅ Snap-in mount design – easy to install in panels or enclosures

✅ Rugged build for long-term durability and reliability

Applications:

⚙️ Industrial Control Panels

🔁 Motor Reversing Circuits

🔌 Power Supply Switching

🧰 DIY Electronics & Prototyping

🚀 Robotics & Automation Systems
