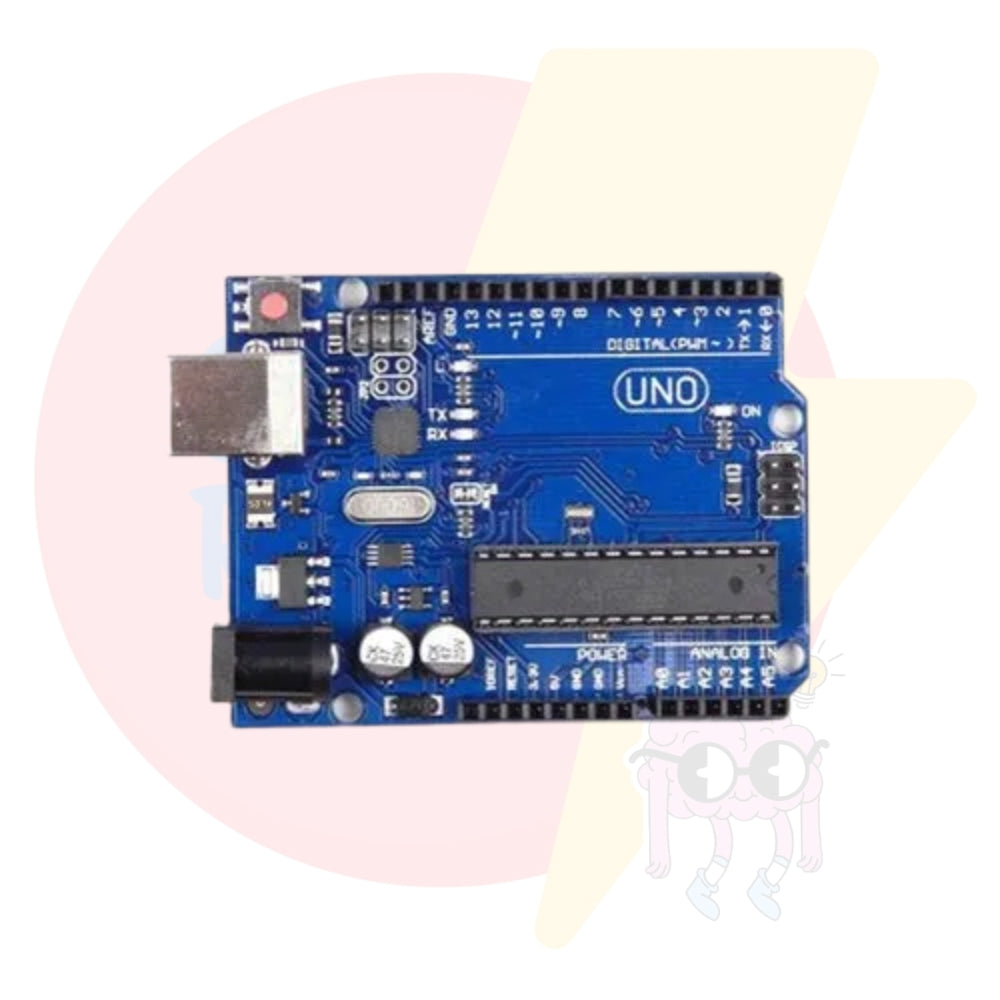

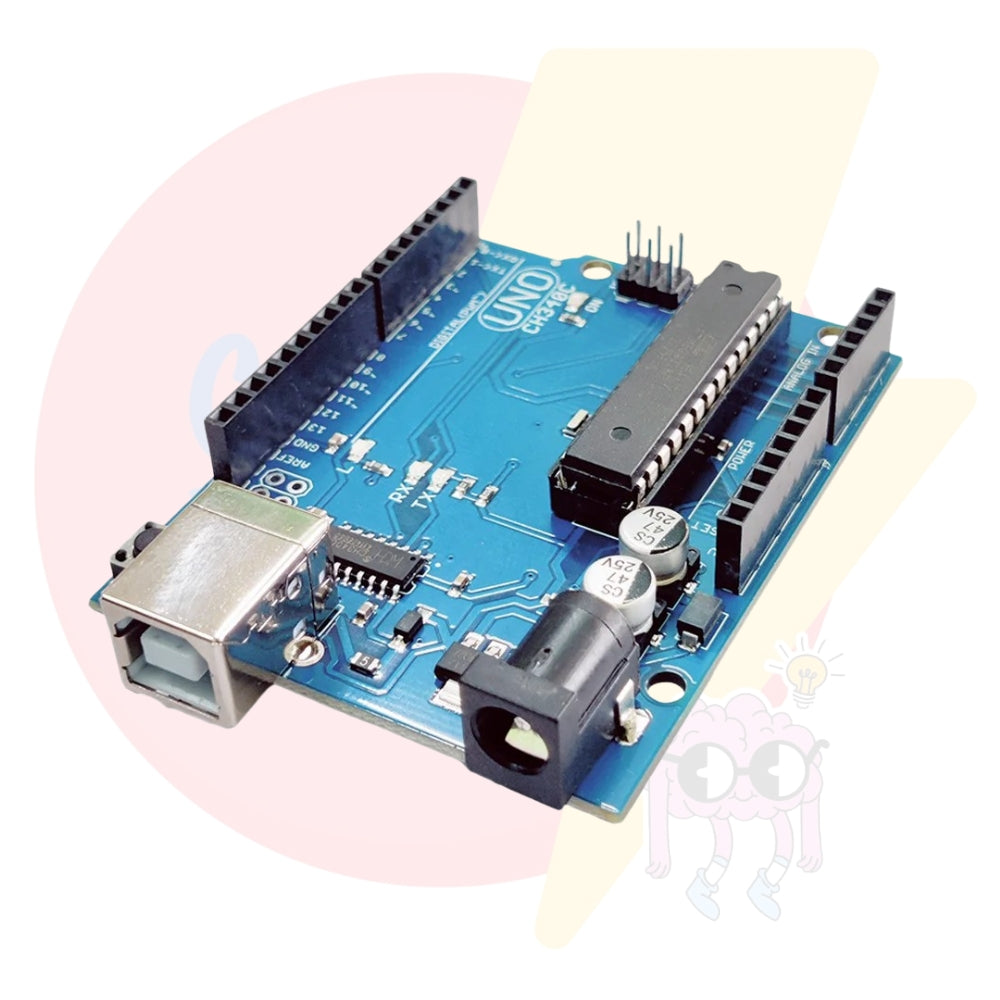

Arduino UNO R3 - ATMEGA328P (DIP)

Build, prototype, and innovate with the classic Arduino UNO R3 – ATmega328P (DIP) development board, the most popular and beginner-friendly board in the Arduino ecosystem. Powered by the ATmega328P microcontroller in DIP (Dual In-line Package) form, this board offers full compatibility with the official Arduino IDE, making it the perfect choice for students, hobbyists, educators, and engineers.

With 14 digital I/O pins, 6 analog inputs, and built-in USB programming, this board is ideal for a wide range of projects including robotics, IoT, home automation, and educational electronics. The DIP package allows easy chip replacement, making it a great choice for learning embedded system design.

Product Specifications:

🔧 Microcontroller: ATmega328P (DIP - Removable)
⚡ Operating Voltage: 5V
🔋 Input Voltage (recommended): 7V – 12V
🔌 Input Voltage (limits): 6V – 20V
📤 Digital I/O Pins: 14 (6 provide PWM output)
📥 Analog Input Pins: 6
⏱️ DC Current per I/O Pin: 40 mA
💾 Flash Memory: 32KB (0.5KB used by bootloader)
🔁 SRAM: 2KB
🧠 EEPROM: 1KB
💡 Clock Speed: 16 MHz
🔌 USB Interface Chip: ATmega16U2 or CH340 (varies by model)
📦 Package Includes: 1x Arduino UNO R3 (ATmega328P DIP) Board
📏 Board Dimensions: Approx. 68.6mm x 53.4mm

Key Features:

✅ ATmega328P DIP – removable and easy to replace

✅ Fully compatible with Arduino IDE and official libraries

✅ Standard Arduino Uno R3 pin layout – supports shields

✅ Simple USB programming and power via USB or DC jack

✅ Great for beginners, students, and professionals

✅ Suitable for all types of prototyping and embedded projects

Applications:

🤖 Robotics and Mechatronics

🌐 IoT and Smart Home Devices

📘 STEM Education and Training

🧪 Embedded Systems Development

📟 Sensor and Control Systems

🔧 DIY Electronics and Automation

7 days replacement warranty applicable only for manufacturing defects. No warranty for physical damage or misuse.

Q1. Are these products tested before shipping?

A: Yes, all components are pre-checked and securely packed to ensure they are in working condition at the time of dispatch.

Q2. Do you offer a warranty?

A: Yes, we offer a 7-day replacement warranty only for manufacturing defects. Physical damage or misuse is not covered.

Q3. How can I claim a replacement?

A: If there’s a manufacturing issue, please contact us within 7 days of delivery with an unboxing video and a clear description of the issue. We’ll guide you through the process.

Q4. How long will delivery take?

A: Orders are usually shipped within sameday if ordered before 2pm & next day dispatch for after 2pm orders. Delivery time depends on your location and courier partner, typically 3–7 working days.

Q5. Is GST invoice available?

A: Yes, we provide a GST invoice with every order. Please enter your GST details at checkout if applicable.
