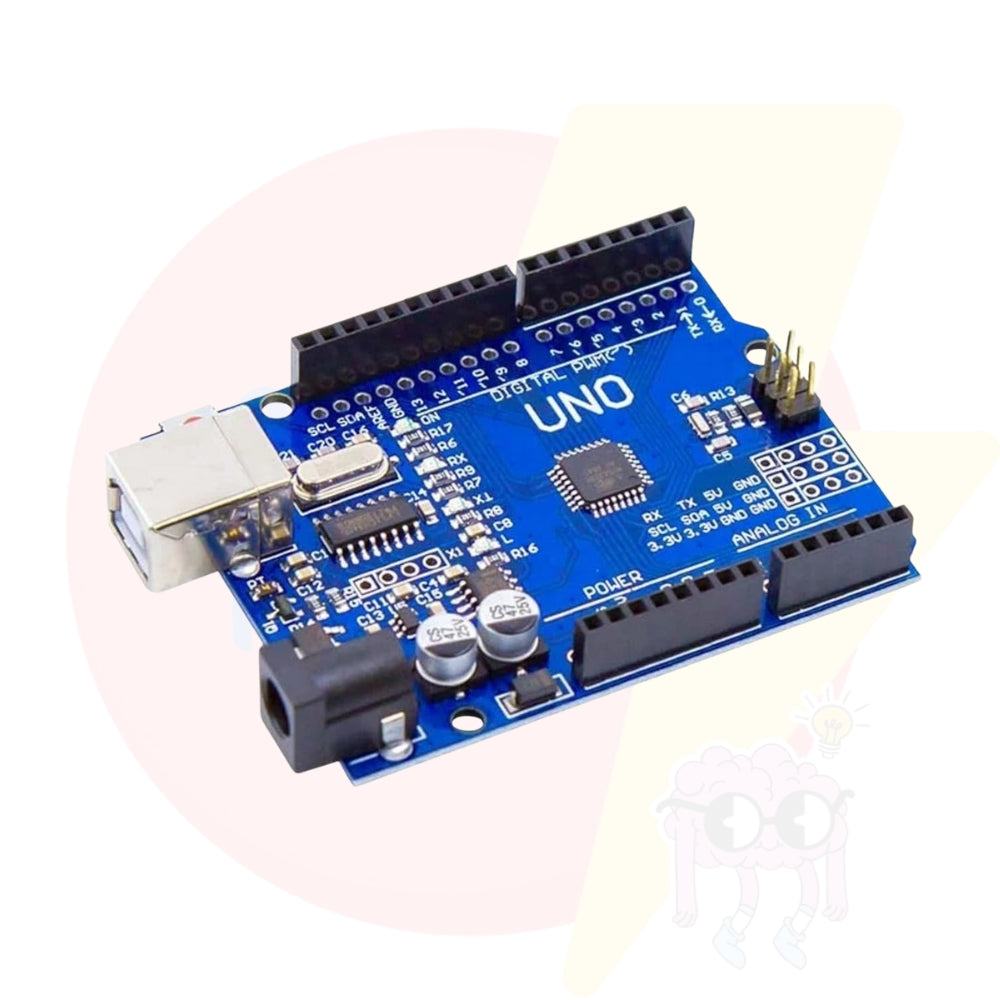

Arduino Uno R3 SMD Compatible Development Board

Power up your electronics and automation projects with the Arduino Uno R3 SMD Compatible Development Board, built around the powerful ATmega328P SMD microcontroller. This board offers the same functionality as the standard Uno R3 but with a Surface-Mount Device (SMD) chip, providing a more compact and robust layout, perfect for prototyping and embedded applications.

Fully compatible with the Arduino IDE, this board is ideal for beginners, hobbyists, and developers working on robotics, IoT, sensor systems, and educational projects. With USB programming, built-in voltage regulation, and digital/analog I/O support, the Uno R3 SMD makes your innovation journey easier and faster.

Product Specifications:

🔧 Microcontroller: ATmega328P (SMD version)
💾 Operating Voltage: 5V
⚡ Input Voltage (recommended): 7V – 12V
⚡ Input Voltage (limits): 6V – 20V
📦 Digital I/O Pins: 14 (of which 6 provide PWM output)
📊 Analog Input Pins: 6
⏱️ DC Current per I/O Pin: 40 mA
📡 Flash Memory: 32KB (0.5KB used by bootloader)
🔁 SRAM: 2KB
🧠 EEPROM: 1KB
🔌 USB Interface: CH340 or Atmega16U2 (varies by model)
📏 Board Size: Approx. 68.6mm x 53.4mm
📎 Package Includes: 1x Arduino Uno R3 SMD Compatible Board

Key Features:

✅ Fully compatible with Arduino Uno R3 and Arduino IDE

✅ Compact SMD design – robust and efficient

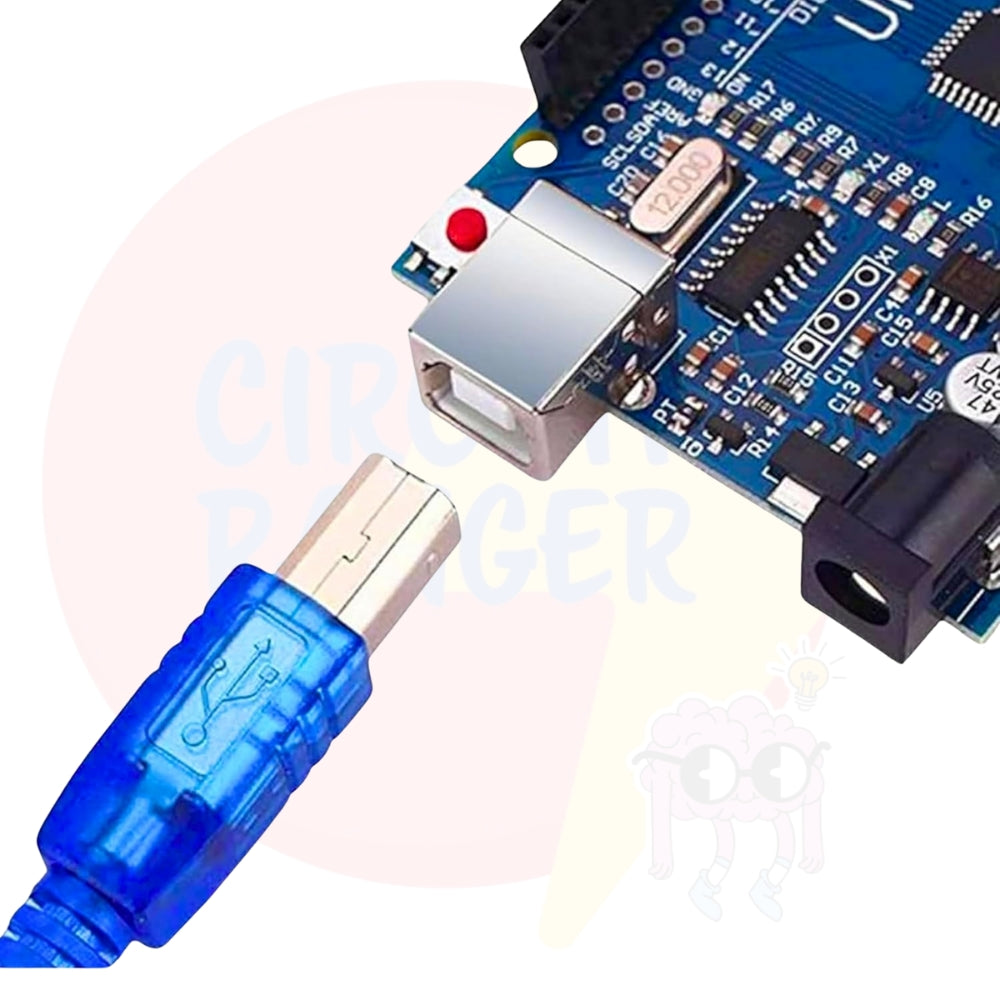

✅ USB programming support via CH340 or Atmega16U2

✅ Easy to interface with sensors, modules, and shields

✅ Ideal for beginners and professionals

✅ Plug-and-play USB power and programming

Applications:

🤖 Robotics and Automation Projects

🌐 IoT (Internet of Things) Development

📘 Educational & STEM Learning

🎛️ Sensor-Based Systems

🔧 DIY Prototyping and Circuit Testing

🧪 Research and Development Projects
