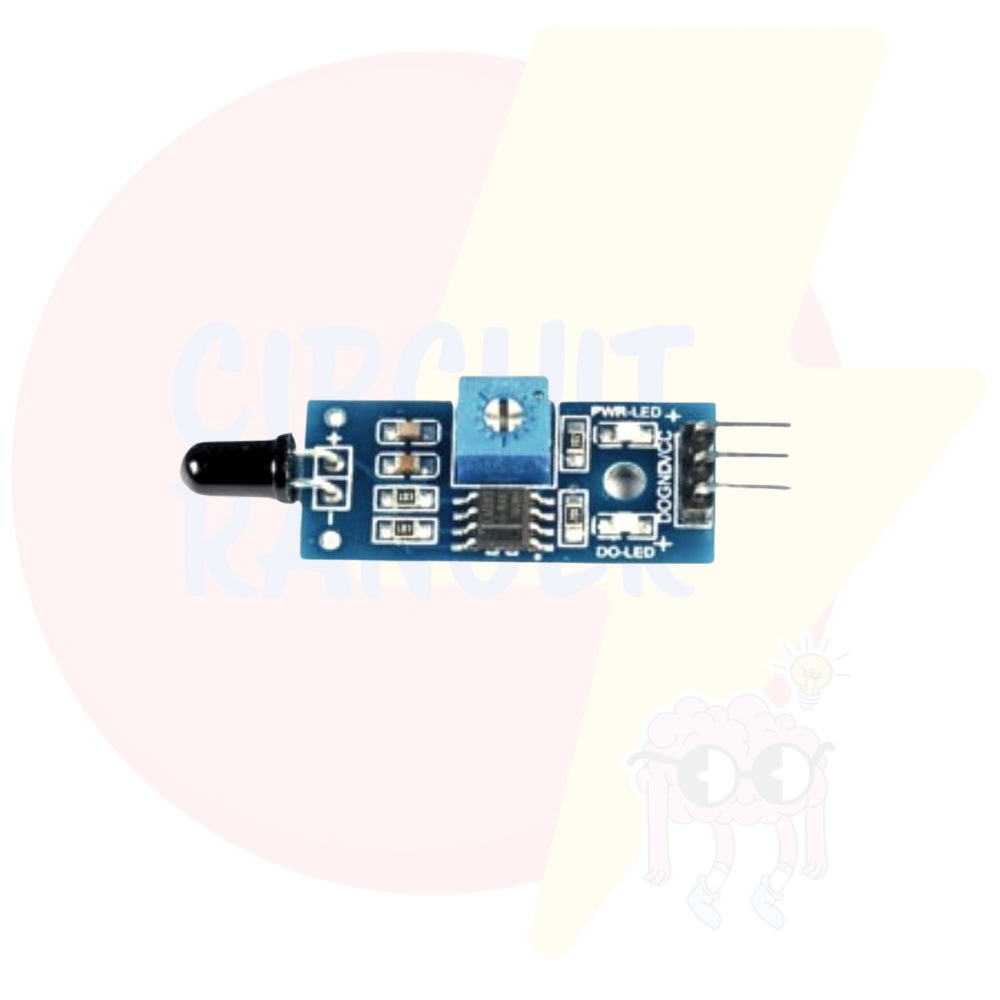

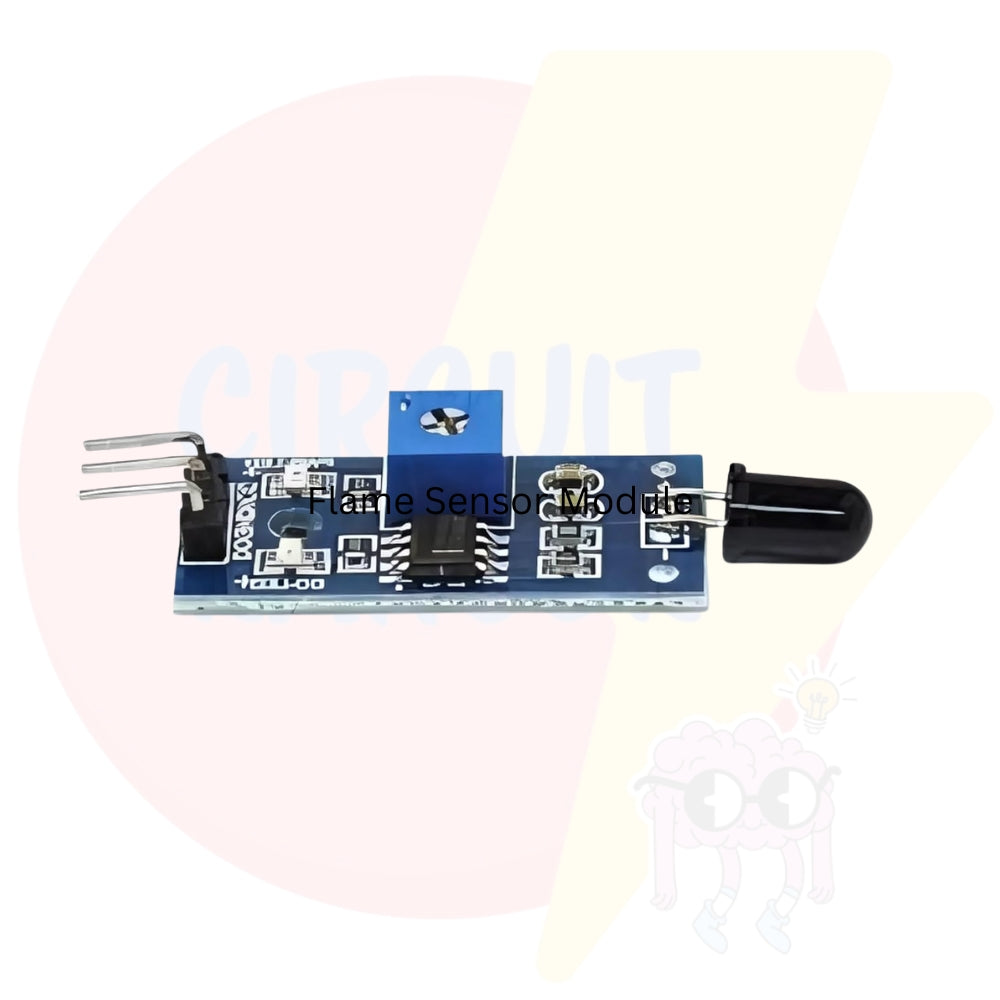

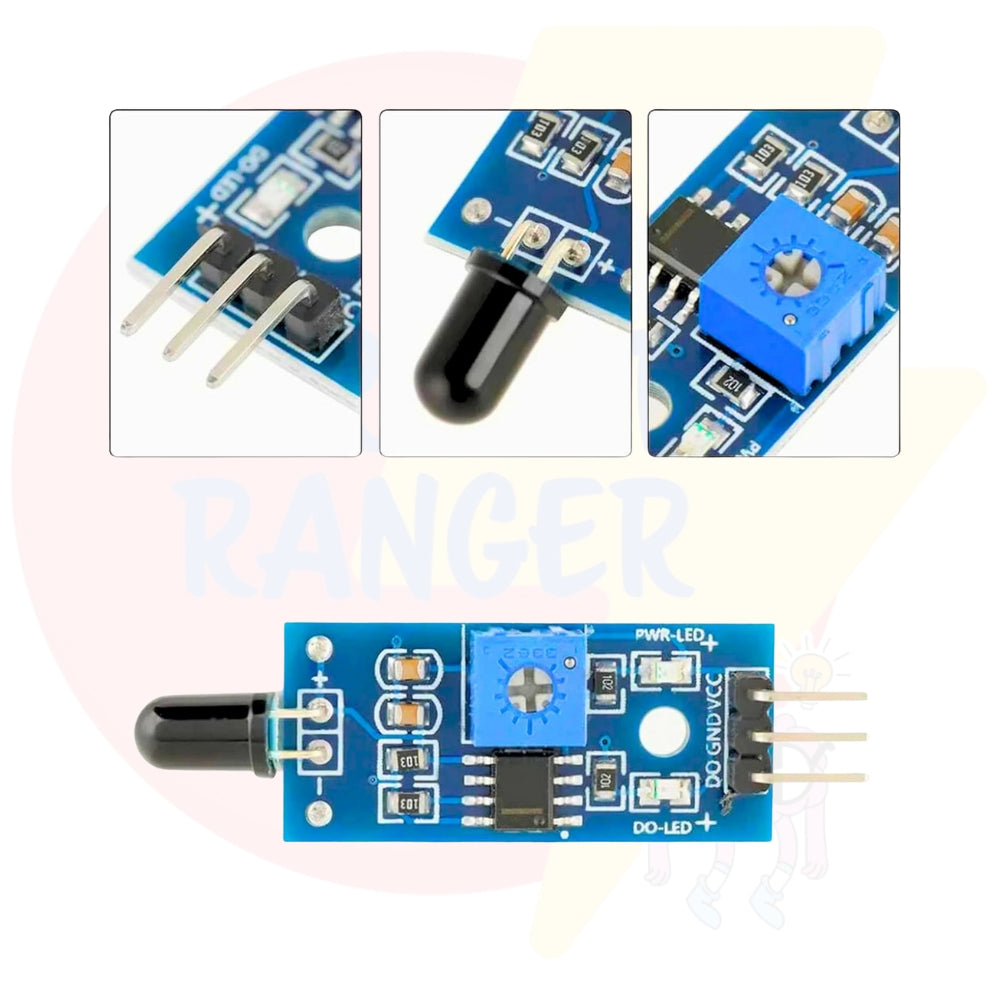

IR Flame / Fire Detection Sensor Module – Infrared Flame Sensor for Arduino & Fire Alarm Projects

The IR Flame / Fire Sensor Module is designed to detect flame or fire sources using infrared light wavelengths (760nm–1100nm). Ideal for Arduino, Raspberry Pi, and other microcontroller platforms, this sensor is perfect for building fire alarm systems, flame detection robots, and IoT safety devices.

With both digital and analog outputs, this module is versatile and easy to use — it can trigger alarms, activate relays, or even send signals to cloud platforms via Wi-Fi modules.

📦 What’s Included:

1 × IR Flame / Fire Sensor Module (with adjustable sensitivity)

📊 Technical Specifications:

ParameterValueDetection Range0–80 cm (depending on flame size)Detection Angle~60 degreesWavelength Sensitivity760nm – 1100nm (IR)Operating Voltage3.3V – 5VOutputDigital (D0) & Analog (A0)Indicator LEDsPower LED & Signal Output LEDSensitivity AdjustmentYes (via onboard potentiometer)Dimensions~3.2cm × 1.4cm

🎯 Applications:

Fire and flame detection systems

Smart fire alarm triggers

Home and industrial safety monitoring

Fire-fighting robots

IoT-based hazard monitoring

Science projects and STEM education

7 days replacement warranty applicable only for manufacturing defects. No warranty for physical damage or misuse.

Q1. Are these products tested before shipping?

A: Yes, all components are pre-checked and securely packed to ensure they are in working condition at the time of dispatch.

Q2. Do you offer a warranty?

A: Yes, we offer a 7-day replacement warranty only for manufacturing defects. Physical damage or misuse is not covered.

Q3. How can I claim a replacement?

A: If there’s a manufacturing issue, please contact us within 7 days of delivery with an unboxing video and a clear description of the issue. We’ll guide you through the process.

Q4. How long will delivery take?

A: Orders are usually shipped within sameday if ordered before 2pm & next day dispatch for after 2pm orders. Delivery time depends on your location and courier partner, typically 3–7 working days.

Q5. Is GST invoice available?

A: Yes, we provide a GST invoice with every order. Please enter your GST details at checkout if applicable.

Still have questions?

📩 Chat with us via the WhatsApp icon or email us at enquiry@circuitranger.in
