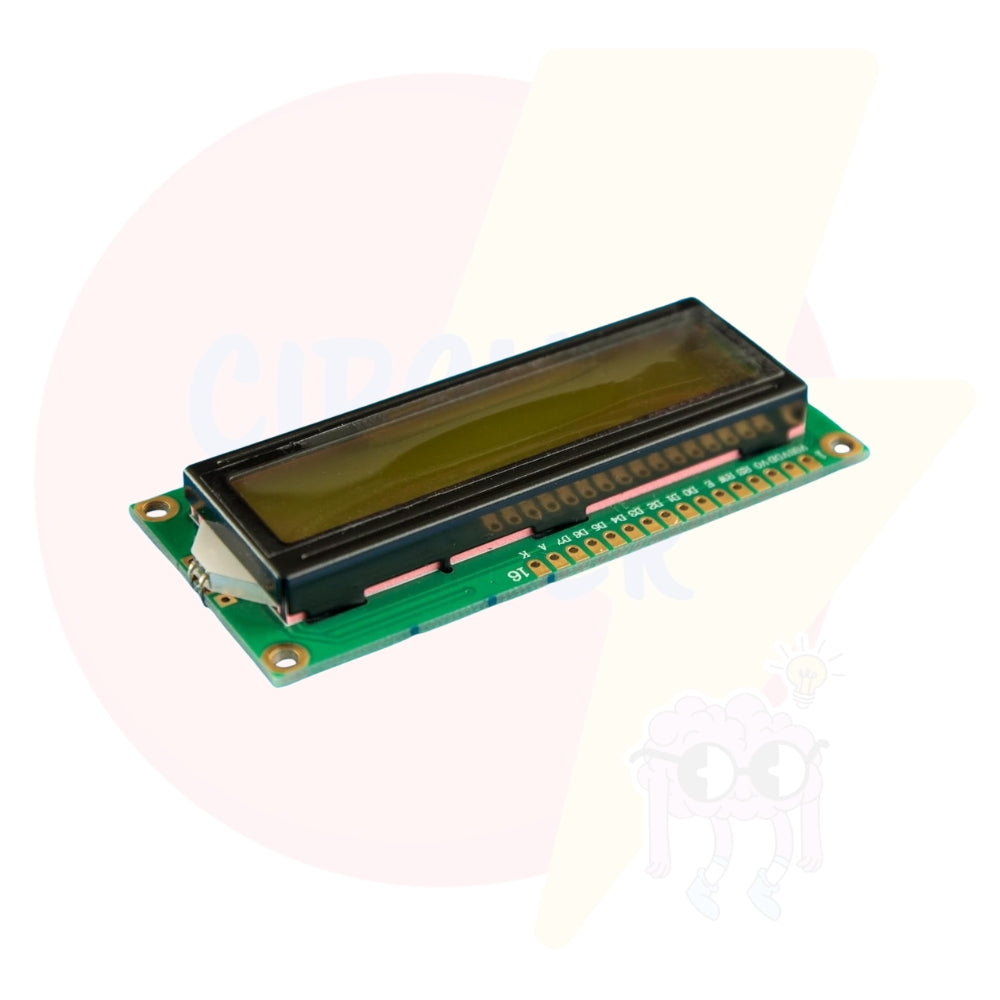

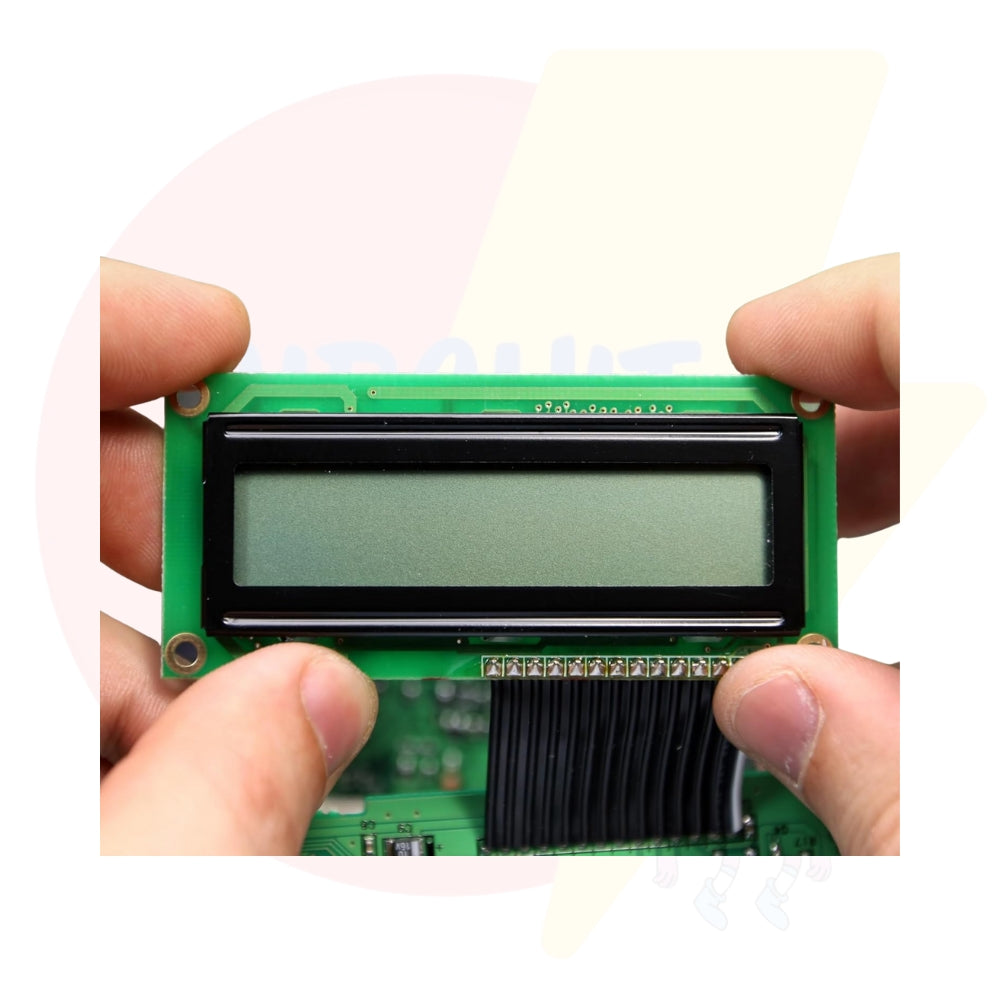

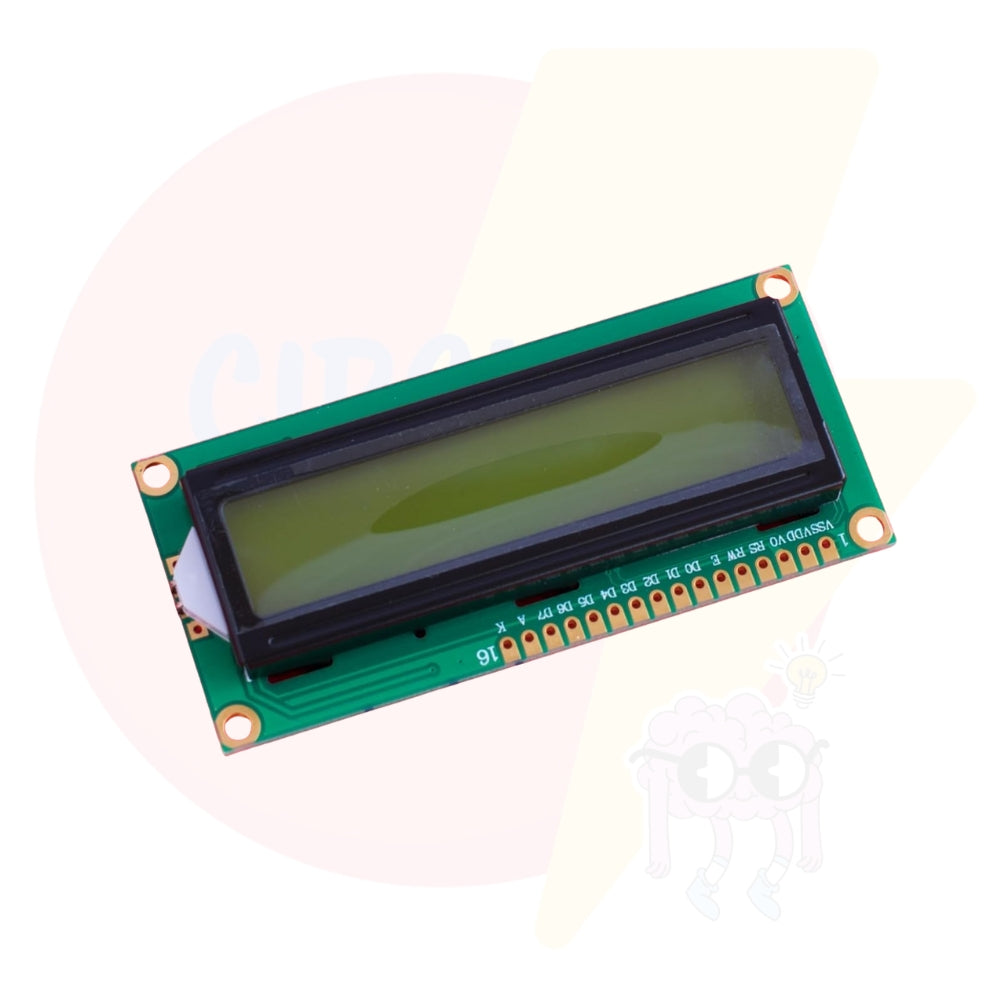

JHD 162A 16x2 LCD Module Display (Green)

Product Description:
The JHD 162A 16x2 LCD Module Display is a widely used alphanumeric display that shows 16 characters on 2 lines, making it ideal for embedded systems, DIY electronics, and microcontroller-based projects. Featuring a green backlight with black characters, this display offers excellent visibility and contrast even in low-light environments.

Compatible with most development platforms including Arduino, AVR, PIC, Raspberry Pi, and more, the JHD162A uses the standard HD44780 controller, which is supported by many open-source libraries, making it easy to program and integrate.

Key Features:

🔤 16 Characters x 2 Lines – Clear, high-contrast alphanumeric display
💡 Green Backlight with Black Text – Easy to read in various lighting conditions
⚡ HD44780 Compatible – Supported by most microcontroller platforms and libraries
🔌 Parallel Interface (4-bit or 8-bit) – Flexible connection options
🧰 Perfect for Projects – Use in menus, sensor data displays, clocks, and more

Technical Specifications:

Model: JHD 162A

Display Format: 16 x 2 (16 characters, 2 lines)

Character Size: 5 x 8 dots

Backlight: Green LED

Text Color: Black

Interface: Parallel (4-bit or 8-bit)

Controller: HD44780 or compatible

Supply Voltage: 5V DC

Operating Current: ~1mA (without backlight), up to 15mA (with backlight)

Dimensions (L x W x H): Approx. 80mm x 36mm x 10mm

Mounting Holes: Yes (for easy panel installation)

Adjustable Contrast: Via external potentiometer (required)

Operating Temperature: -20°C to +70°C

Applications:
✅ Arduino & Microcontroller Projects
✅ Embedded System Interfaces

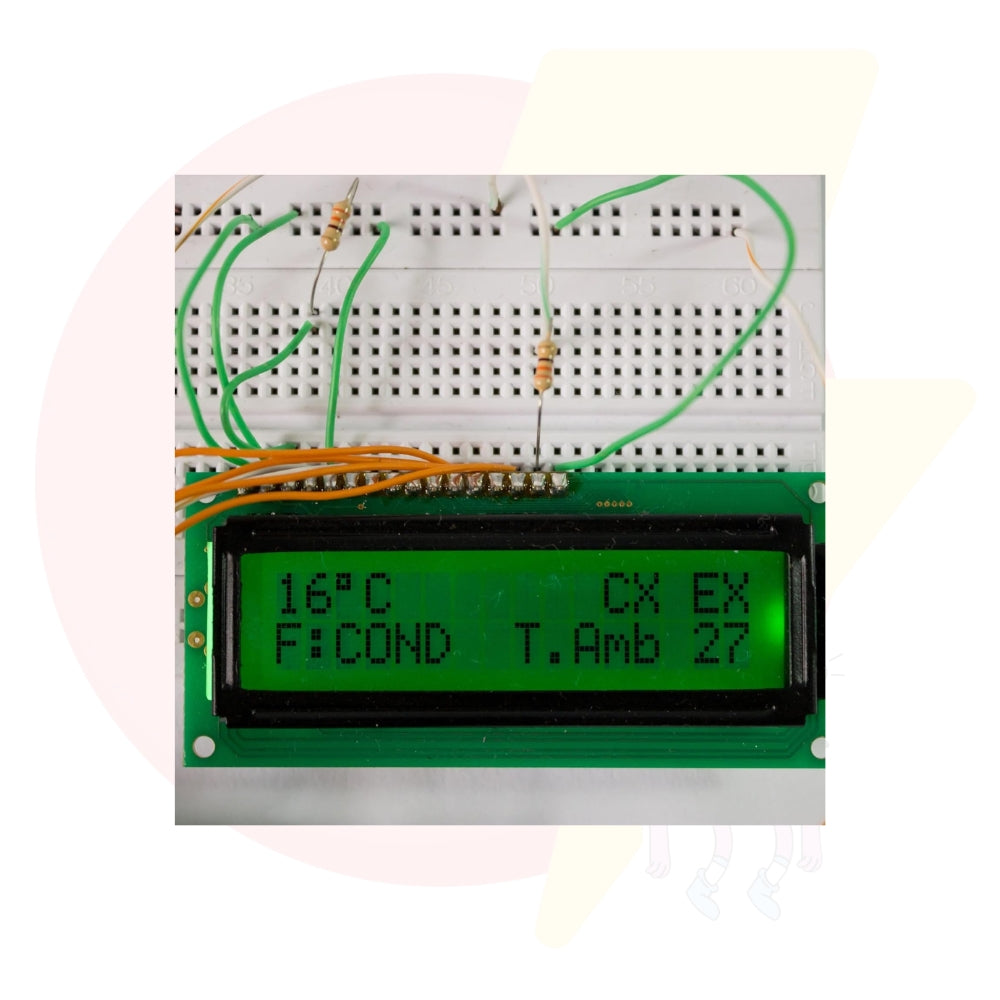

✅ Sensor Data Display
✅ DIY Electronics & Robotics
✅ Home Automation Panels
✅ Educational Prototyping & Learning Kits
