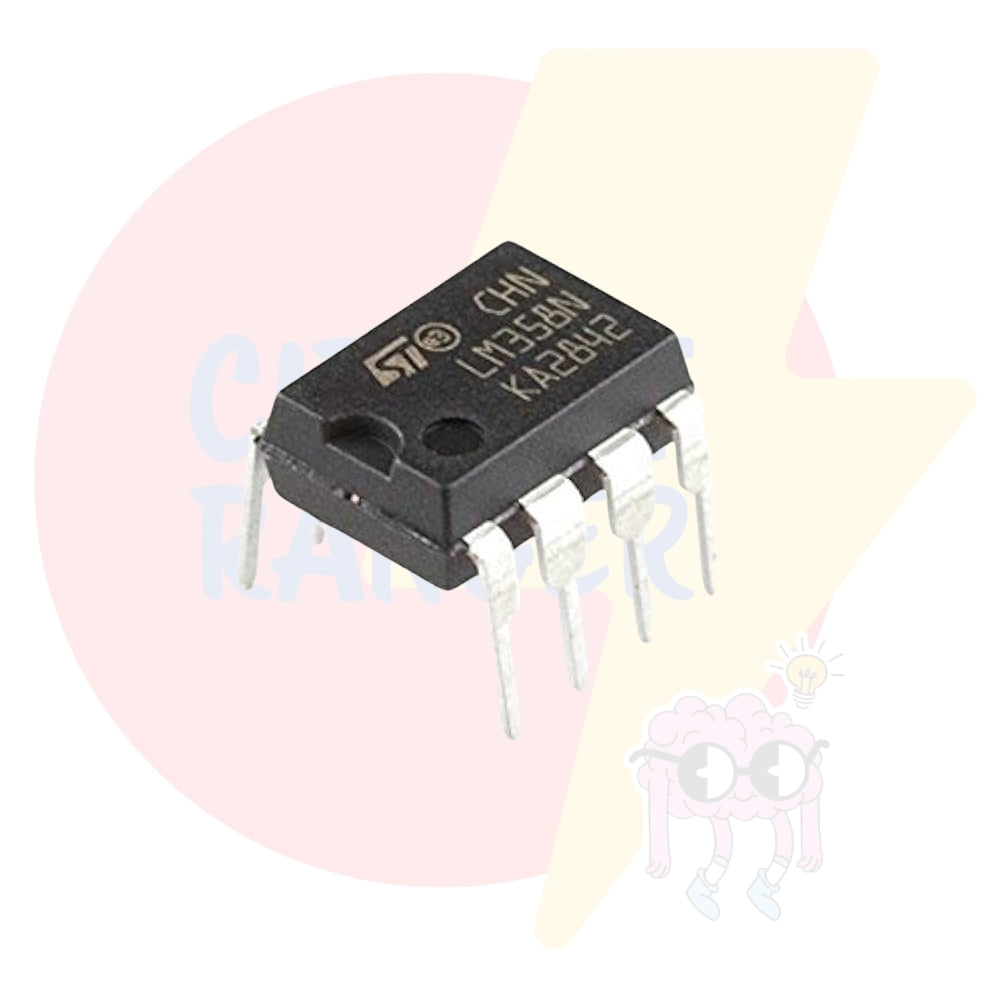

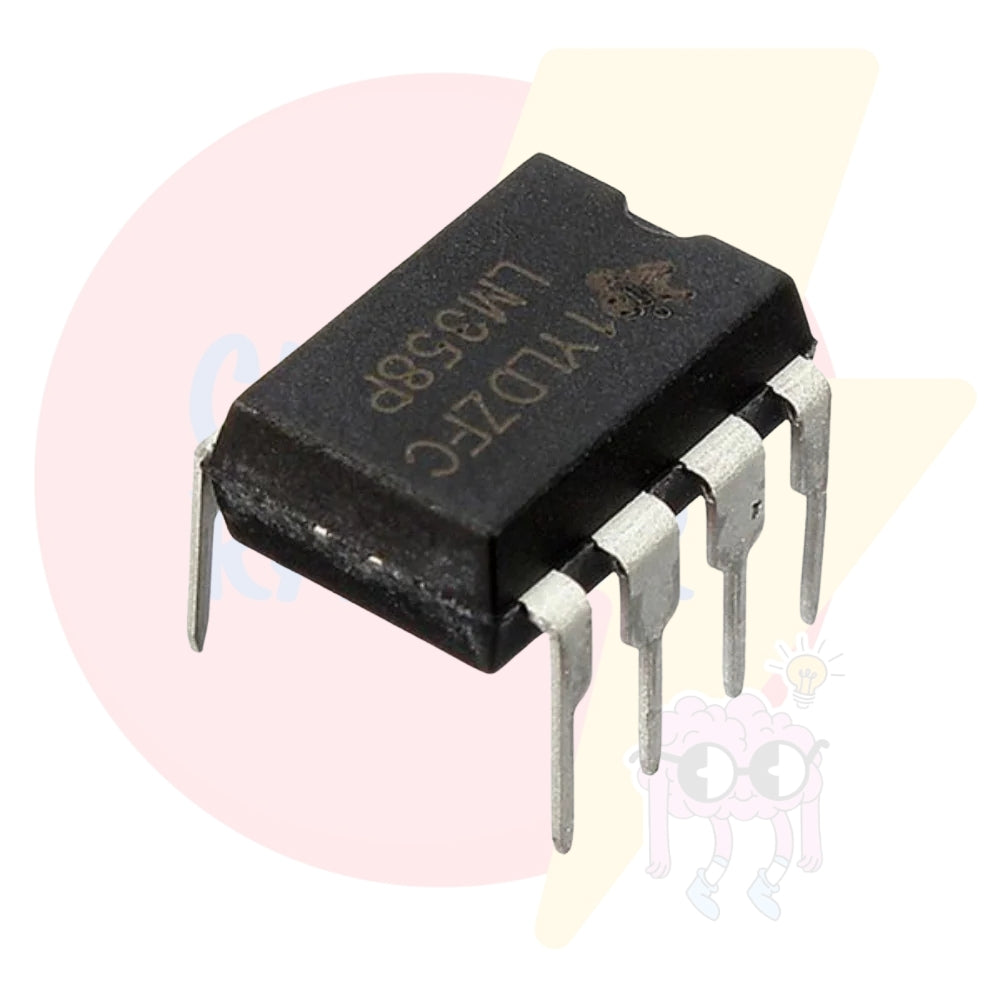

LM358 Dual-Op amp 8 Pin DIP

Product Description:
The LM358 Dual Op-Amp IC is a versatile, low-power operational amplifier designed for a wide range of analog applications. Packaged in a standard 8-pin DIP form, this IC contains two independent high-gain, internally frequency-compensated op-amps that are ideal for signal conditioning, sensor interfacing, active filters, voltage followers, and more.

The LM358 can operate from a single power supply, making it highly suitable for battery-powered and low-voltage projects. Compatible with most microcontroller platforms like Arduino, Raspberry Pi, and PIC, this is a must-have component for students, engineers, and hobbyists.

Key Features:

🔧 Dual Op-Amps in One Package – Two independent op-amps in a single IC
⚡ Wide Supply Range – Operates on single or dual power supplies
💡 Low Power Consumption – Ideal for energy-efficient designs
🛠️ Standard DIP Package – Easy to breadboard or solder on a PCB
📶 Internally Frequency Compensated – Stable gain without external components

Technical Specifications:

IC Type: Dual Operational Amplifier

Model: LM358

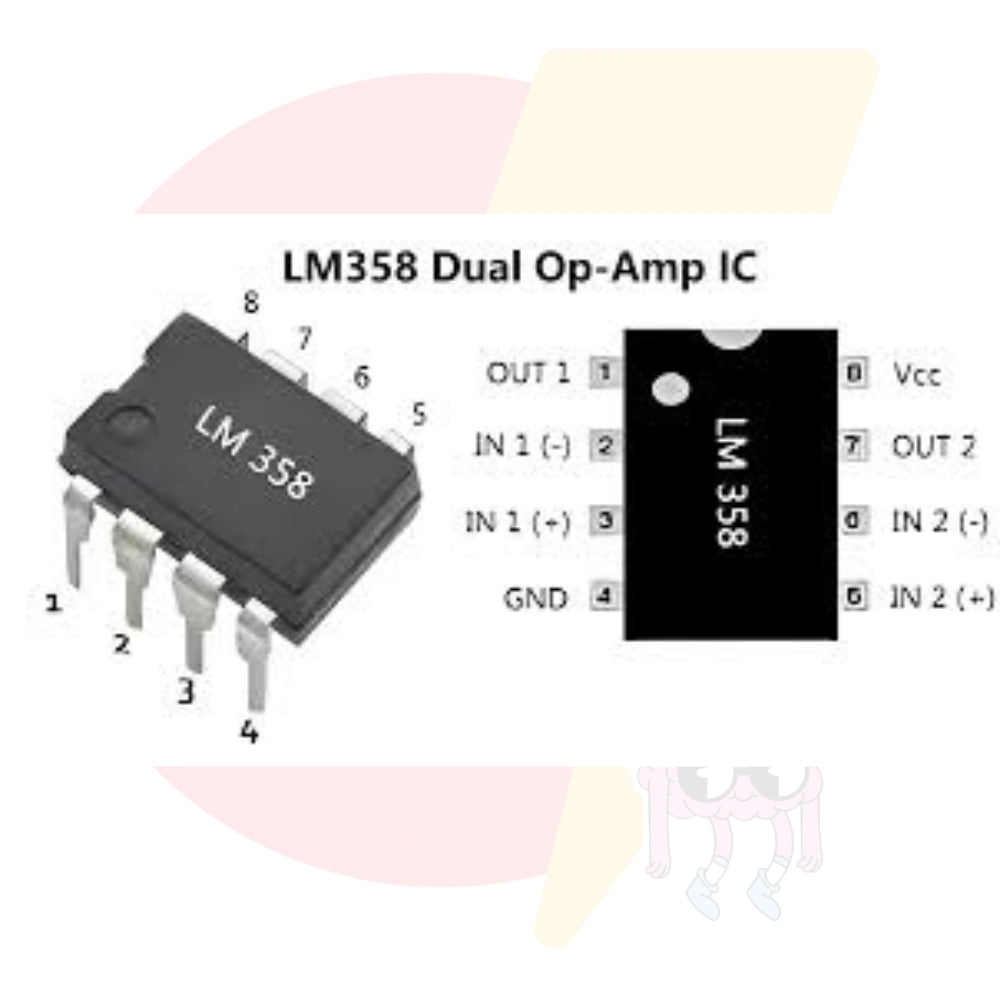

Package: 8-Pin DIP (Dual Inline Package)

Supply Voltage:

Single Supply: 3V to 32V

Dual Supply: ±1.5V to ±16V

Input Offset Voltage: Max 7mV

Gain Bandwidth Product: 1 MHz

Slew Rate: 0.3V/μs

Output Voltage Swing: 0V to VCC – 1.5V (typical)

Input Bias Current: 20nA (typical)

Operating Temperature Range: 0°C to +70°C

Pin Count: 8

Applications:
✅ Sensor Signal Amplification
✅ Analog Filters and Audio Amplifiers
✅ Voltage Comparators
✅ Voltage Followers (Buffer)
✅ DIY Electronics and Arduino Projects
✅ Embedded & Analog System Design
