LM393 Photosensitive Light-Dependent Control Sensor LDR Module

Product Description:
Automate your projects with precision using the LM393 Photosensitive LDR Sensor Module. This light-detection module uses an LDR (Light Dependent Resistor) in combination with an LM393 comparator chip to detect light intensity and output a clean digital signal. Ideal for building light-activated devices such as automatic lighting, solar trackers, smart robots, and more.

The onboard potentiometer allows you to adjust the light sensitivity threshold, making this module highly versatile for various lighting environments. Compatible with Arduino, Raspberry Pi, and other microcontroller platforms, it’s an essential sensor for any smart project or automation setup.

Key Features:

🔦 Detects Ambient Light Intensity – Ideal for automatic lighting and daylight sensing
⚙️ Adjustable Sensitivity – Onboard potentiometer to set light threshold
💡 Digital Output – Clean HIGH/LOW signal based on light level
🔧 Easy to Use – Compatible with Arduino, ESP32, Raspberry Pi, etc.
🔌 LM393 Comparator IC – Provides stable and reliable output

Technical Specifications:

Sensor Type: LDR (Light Dependent Resistor)

Comparator IC: LM393

Operating Voltage: 3.3V – 5V DC

Output Type: Digital (0 or 1 based on light intensity)

Adjustable Threshold: Yes (via potentiometer)

Output Indicator: LED onboard (lights up when condition is met)

PCB Size: Approx. 3.2cm x 1.4cm

Mounting Hole: Yes

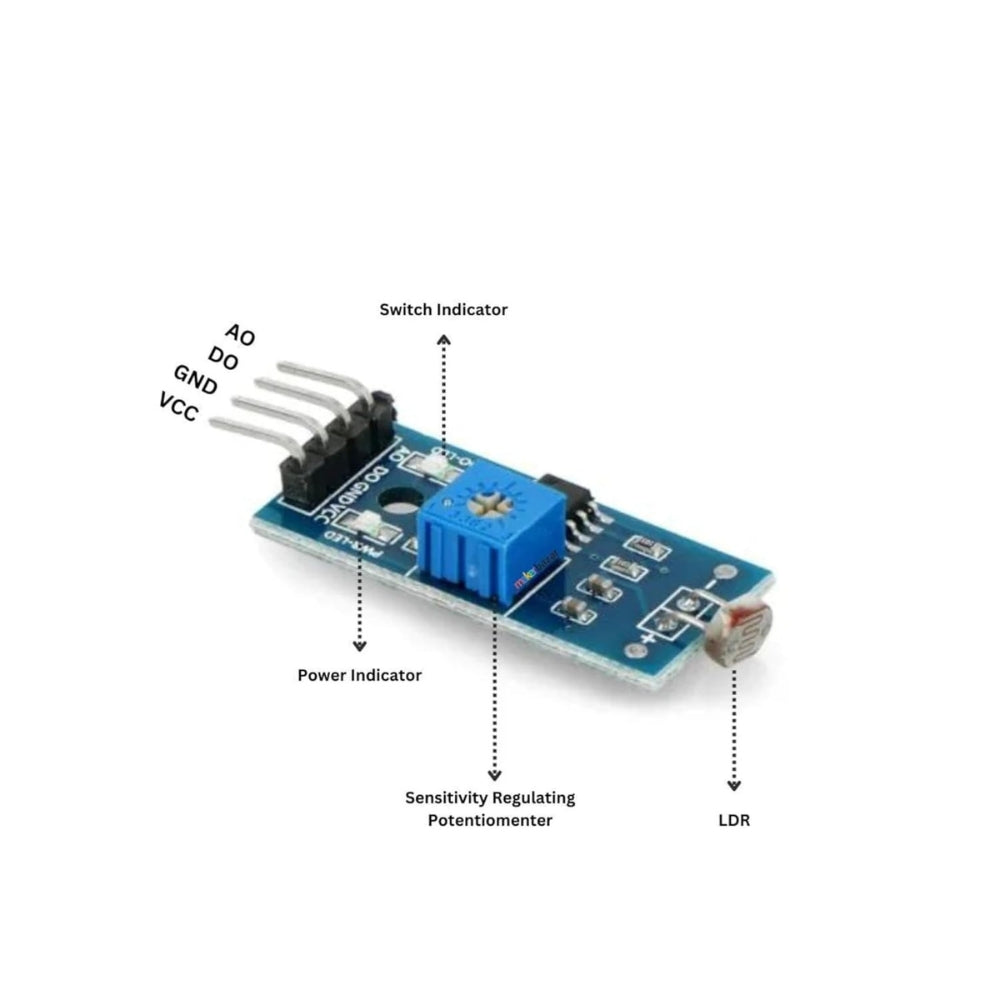

Interface Pins:

VCC: Power Supply

GND: Ground

DO: Digital Output

Applications:
✅ Automatic Light Control Systems
✅ Light-Activated Alarms or Relays
✅ Solar Tracking Devices
✅ DIY Electronics & Arduino Projects
✅ Smart Home & IoT Applications
✅ Classroom & Educational Kits
