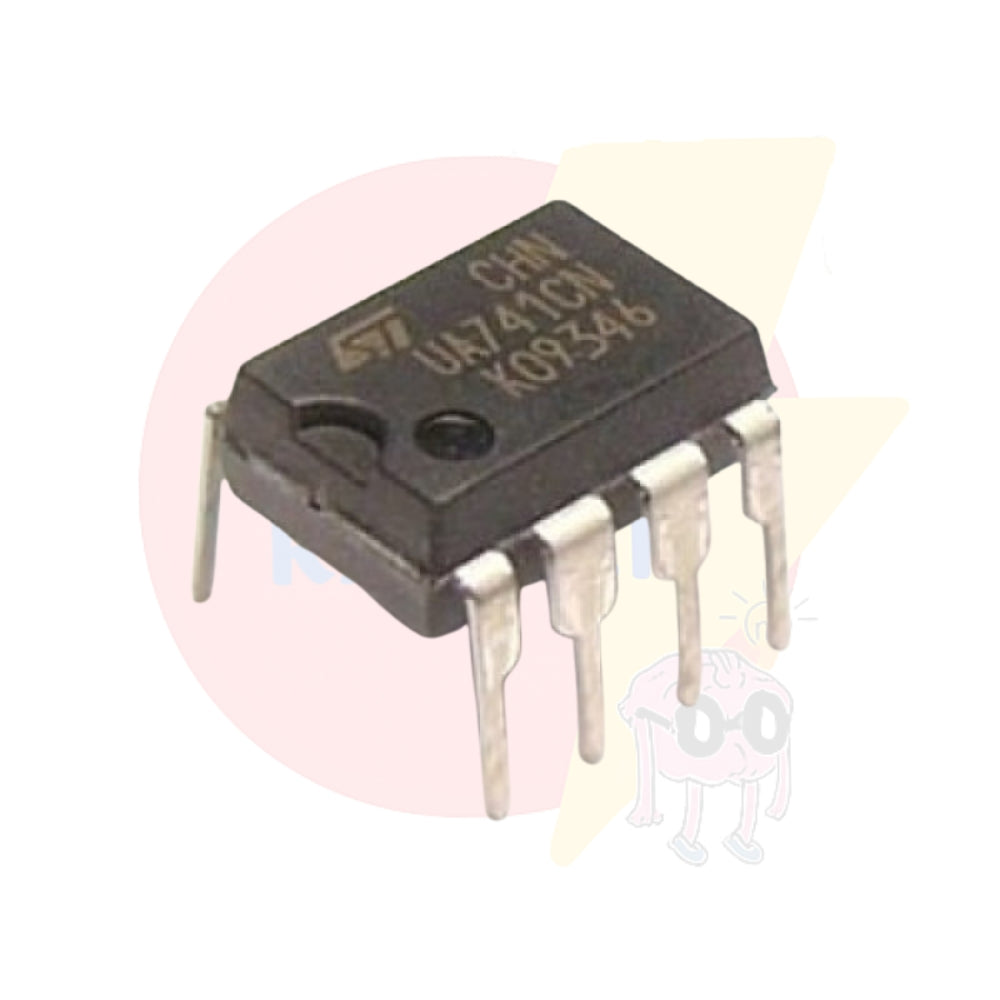

LM741 General Purpose Op-Amp IC

The LM741 is a widely used general-purpose operational amplifier IC known for its versatility and reliability. Whether you're building analog signal processing circuits, filters, amplifiers, or voltage followers, the LM741 offers stable performance across a wide range of applications.

🔧 Specifications:

IC Name: LM741

Package Type: DIP-8 (Dual In-Line Package)

Supply Voltage (Vcc): ±5V to ±18V

Input Offset Voltage: ≤ 6mV

Slew Rate: 0.5 V/μs (typical)

Gain Bandwidth Product: 1 MHz (typical)

Input Resistance: 2 MΩ

Output Voltage Swing: ±14V (with ±15V supply)

Operating Temperature: 0°C to +70°C

✅ Features:

Internally frequency compensated

Short-circuit protection

No latch-up

High input impedance

Low power consumption

Compatible with TTL, CMOS, and other logic levels

🔌 Applications:

Audio preamps & signal amplifiers

Voltage followers (buffer circuits)

Analog computing

Integrator/differentiator circuits

Comparators

DIY electronics and student projects

7 days replacement warranty applicable only for manufacturing defects. No warranty for physical damage or misuse.

Q1. Are these products tested before shipping?

A: Yes, all components are pre-checked and securely packed to ensure they are in working condition at the time of dispatch.

Q2. Do you offer a warranty?

A: Yes, we offer a 7-day replacement warranty only for manufacturing defects. Physical damage or misuse is not covered.

Q3. How can I claim a replacement?

A: If there’s a manufacturing issue, please contact us within 7 days of delivery with an unboxing video and a clear description of the issue. We’ll guide you through the process.

Q4. How long will delivery take?

A: Orders are usually shipped within sameday if ordered before 2pm & next day dispatch for after 2pm orders. Delivery time depends on your location and courier partner, typically 3–7 working days.

Q5. Is GST invoice available?

A: Yes, we provide a GST invoice with every order. Please enter your GST details at checkout if applicable.
