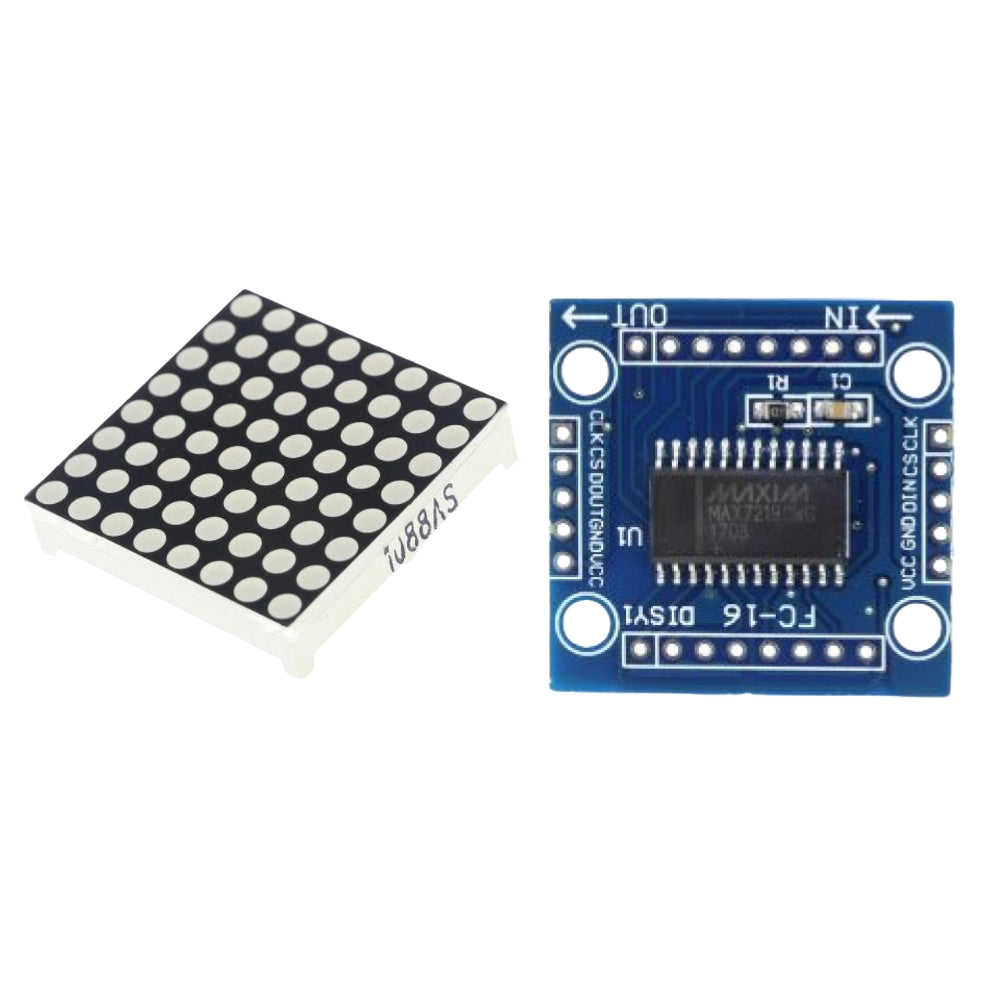

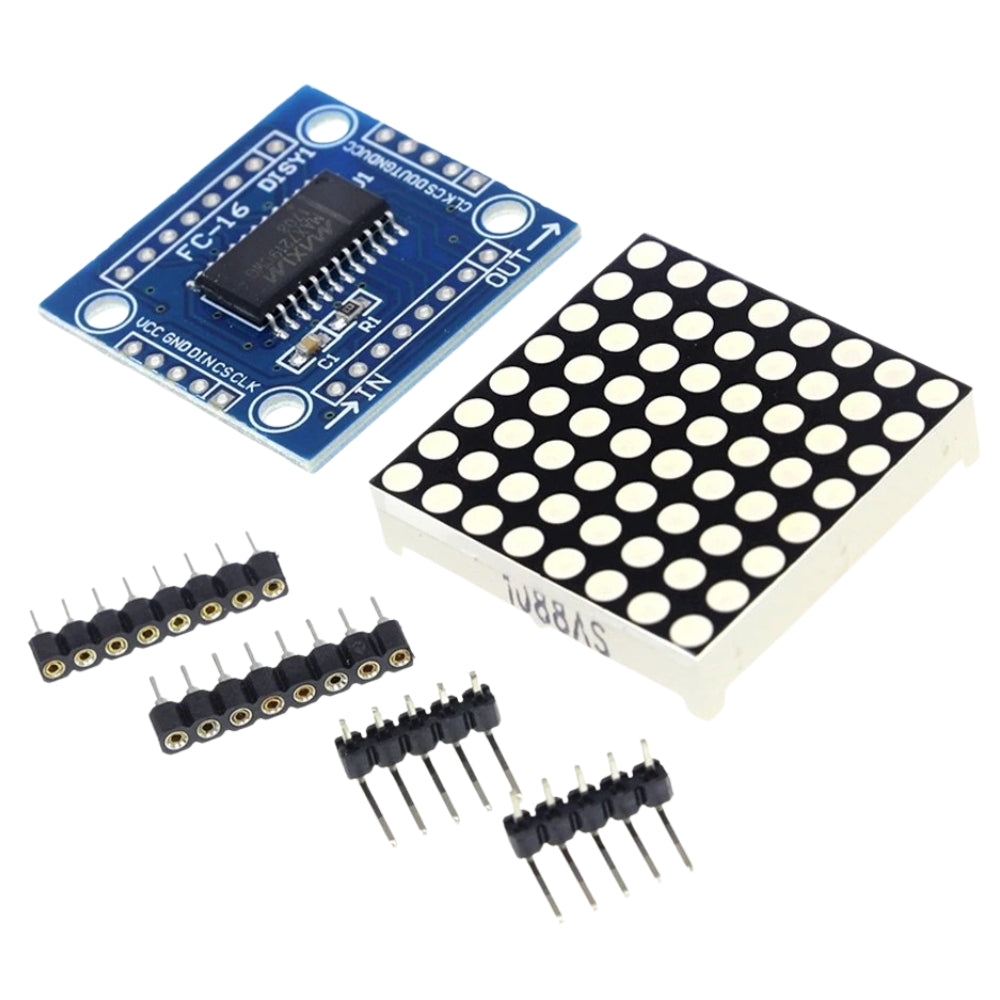

Create eye-catching text, numbers, and animations with the MAX7219 8×8 Dot Matrix LED Display Module. This module allows you to control 64 LEDs (8x8 grid) using just a few microcontroller pins — perfect for scrolling messages, clocks, and DIY electronic displays.
✅ Features:

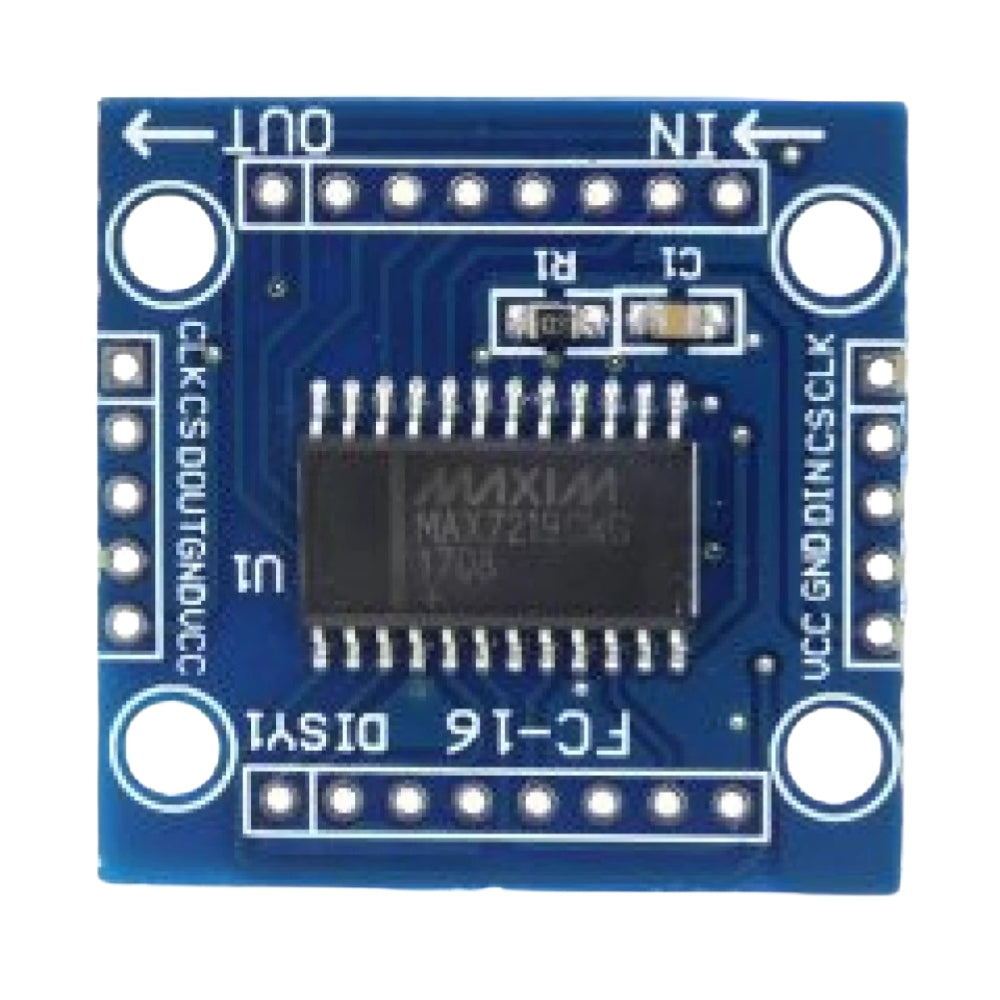

Driver IC: MAX7219 – handles all multiplexing and current control
Display: 8×8 Red LED Dot Matrix (64 LEDs total)
Input Voltage: 5V DC
Interface: SPI (3-wire serial) – saves microcontroller pins
Chainable Design: Connect multiple modules for longer displays
Compatibility: Works with Arduino, ESP8266, ESP32, Raspberry Pi, STM32, etc.
Pre-soldered connectors – plug & play ready
⚙️ Specifications:
Module Size: Approx. 3.2cm x 3.2cm (single module)
Operating Voltage: 5V

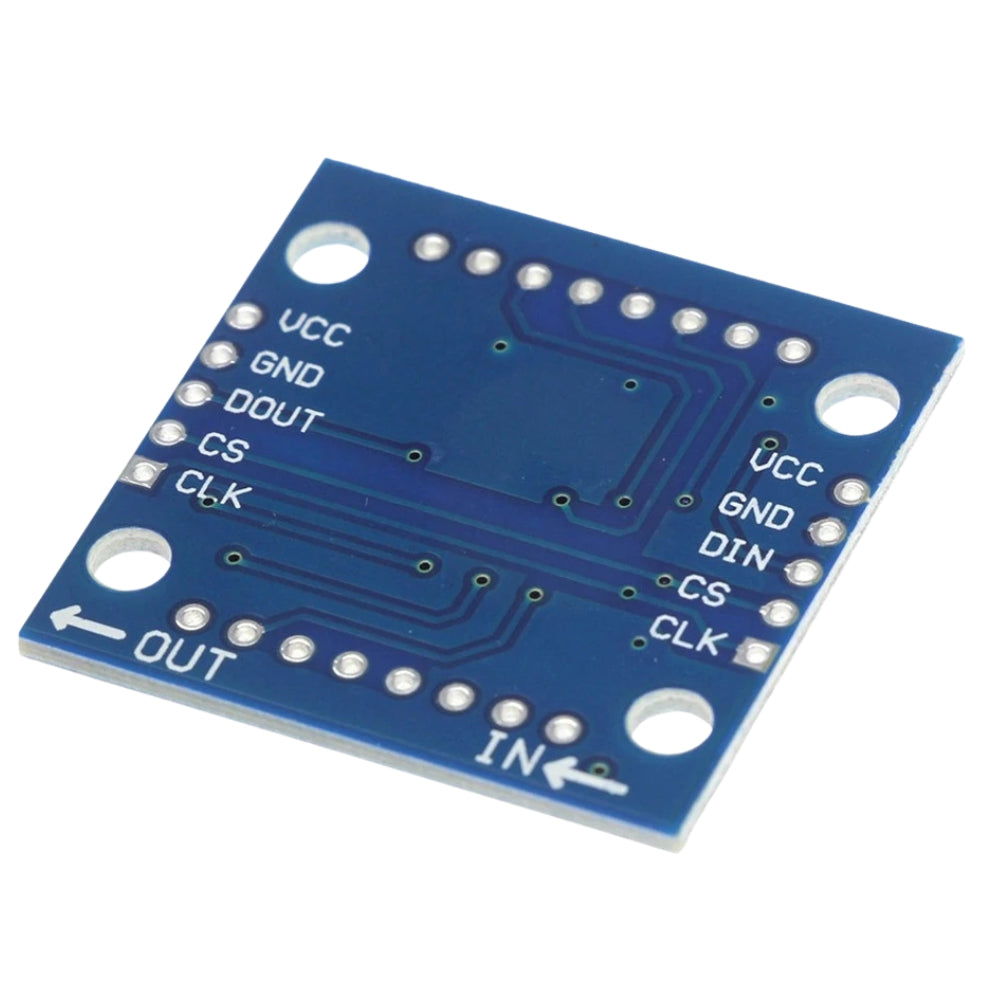

Interface: Serial (CLK, CS, DIN)
LED Color: Red
Mounting Holes: 4 easy-to-mount holes for projects
💻 Applications:
Digital clocks and counters
Scrolling text display boards
Sensor data display (temperature, humidity, etc.)
DIY electronics and robotics projects
Educational & STEM experiments
📦 Package Includes:

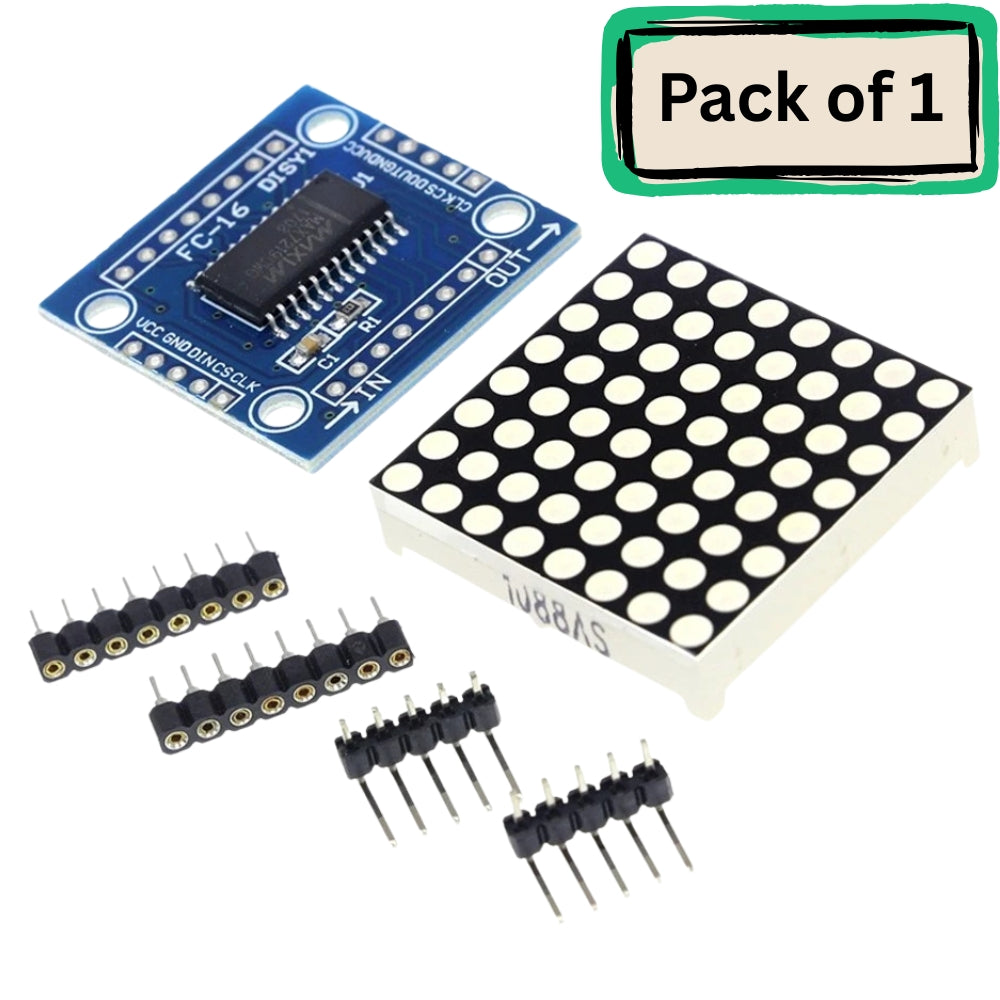

1 × MAX7219 8×8 Dot Matrix LED Display Module
Bring your projects to life with glowing precision and smooth animations — the MAX7219 LED Matrix Module is the perfect blend of simplicity and creativity!
Description
Description
This MAX7219 8×8 dot matrix LED display module features a surface-mount MAX7219 driver IC with SPI interface, offering easy Arduino and Raspberry Pi integration. Ideal for DIY electronics, it supports cascading multiple modules, low-power shutdown, adjustable brightness control, and multiplexed display scanning—perfect for bright scrolling text, animations, instrumentation panels, DIY projects, and microcontroller-based signage.
