MAX7219 Dot Led Matrix Module 4 In 1 Display with 5P Line Module

Name: MAX7219 Dot Led Matrix Module 4 In 1 Display with 5P Line Module
Brand: Circuit Ranger
Price: 449.00 INR
Availability: InStock

SKU:

Rs. 449.00

~~Rs. 599.00~~ Rs. 449.00

Sale Sold out

Taxes included.

Quantity

Free Shipping on prepaid orders above INR 499/-
Same day dispatch - if ordered before 2pm
Dedicated Support - Mon to Sat - 10 AM to 6 PM

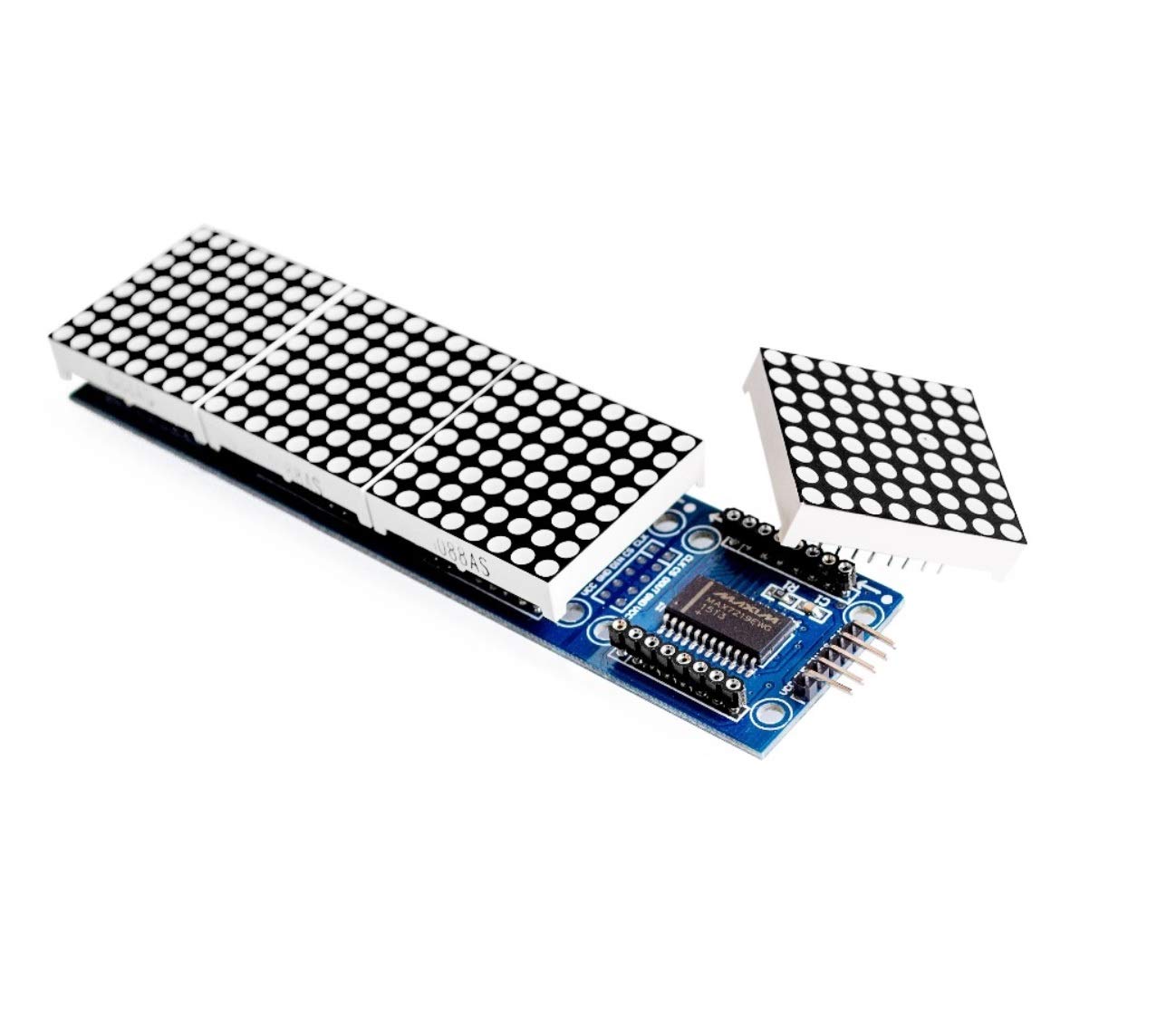

Create bright scrolling messages, clocks, or visual effects with this MAX7219 4-in-1 LED Dot Matrix Display Module. It combines four 8×8 LED matrices into a single long display, making it ideal for running text, scoreboards, and sensor displays. The included 5-pin jumper wire allows easy connection to your microcontroller.
✅ Features:
Integrated Driver: Uses MAX7219 IC – controls 256 LEDs using only 3 data pins
Display Size: 4 modules of 8×8 LEDs (total 32×8 pixels)
Pre-Assembled: 4 matrix modules mounted on a single PCB board
Includes: 1 × 5-pin Dupont Cable for plug-and-play connection
Input Voltage: 5V DC
Interface: SPI-compatible (CLK, CS, DIN)
Chainable: Connect multiple 4-in-1 modules for longer displays
Compatibility: Works perfectly with Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and other microcontrollers
⚙️ Specifications:
LED Color: Red (Standard)
Module Size: Approx. 12.8cm × 3.2cm
Operating Voltage: 5V DC
Interface: 3-wire SPI
Cable Type: 5P Dupont Line (Included)
💻 Applications:
Scrolling text message displays
Digital clocks and counters
IoT dashboards and notice boards
DIY electronic projects and STEM learning kits
📦 Package Includes:

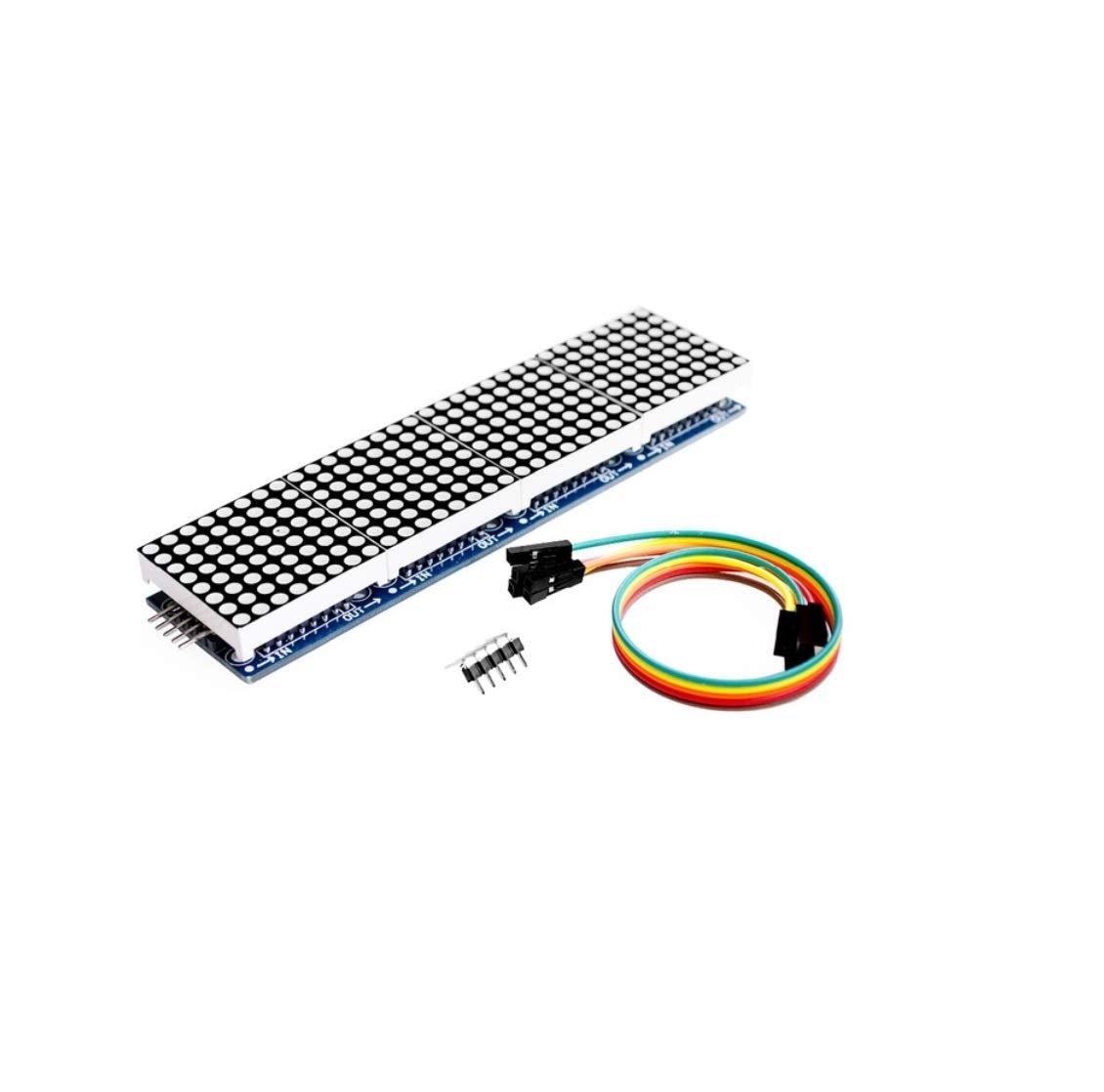

1 × MAX7219 4-in-1 Dot Matrix LED Display Module

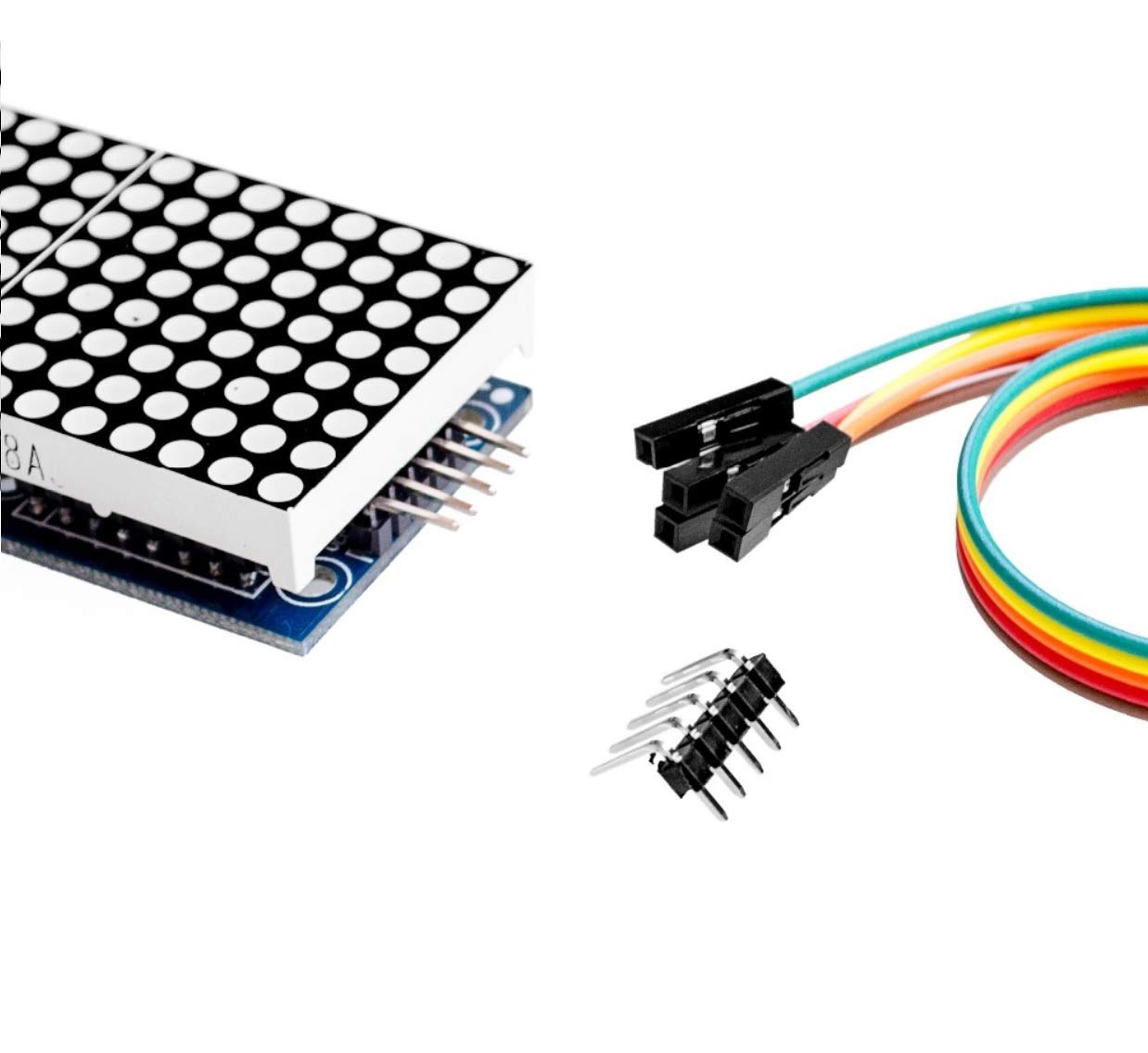

1 × 5P Line (Dupont Cable)

Description

MAX7219 Microcontroller 4-in-1 Display Dot Matrix Module for Arduno

Wiring

1. The left side of the module is the input port, and the right is the output port.

2. Control of a single module, the input port only need to receive CPU.

3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
