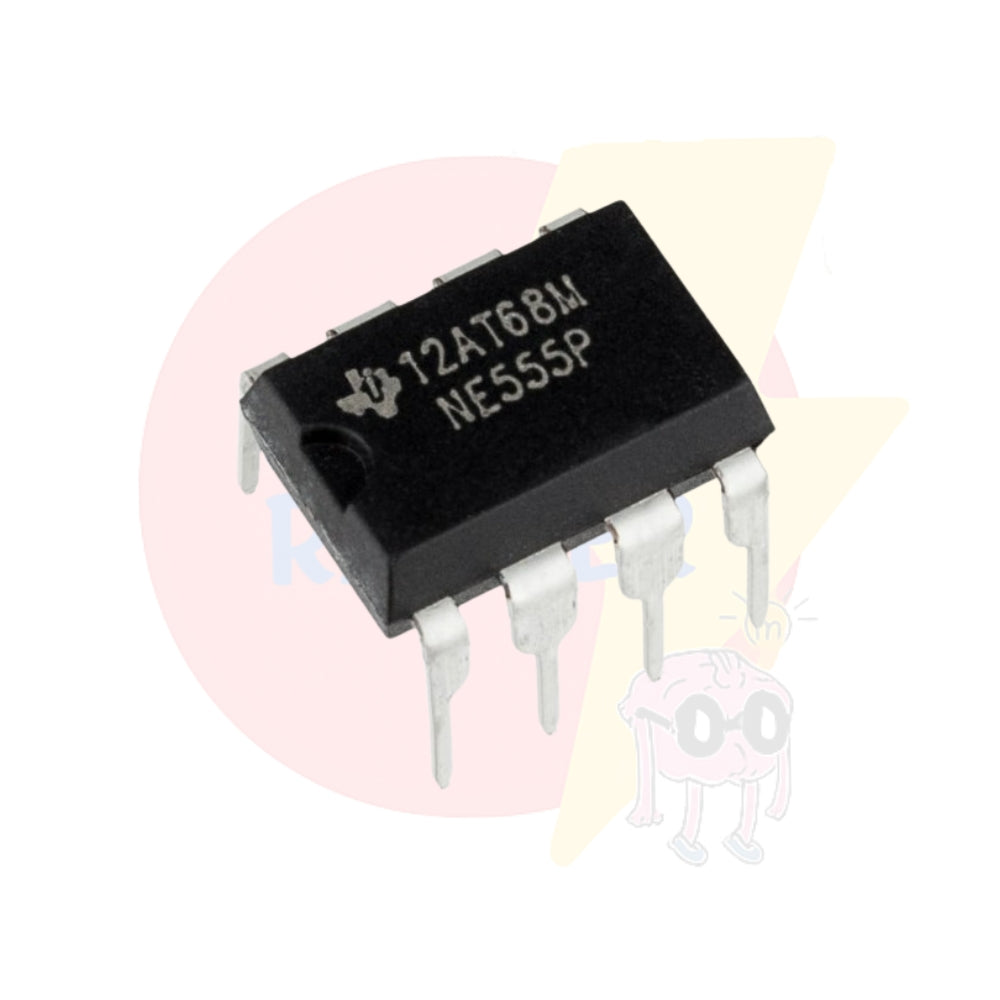

NE555 Timer IC

The NE555 is a versatile and reliable timer IC widely used in electronics for creating time delays, pulse generation, and oscillators. Whether you're building blinking LEDs, tone generators, or PWM circuits, this IC is a must-have for your DIY or engineering toolbox.

🔧 Specifications:

IC Name: NE555 Timer IC

Package Type: DIP-8 (Dual In-Line Package, 8 pins)

Supply Voltage (VCC): 4.5V to 16V

Operating Current: 3mA to 15mA (typical)

Output Current: Max 200mA

Frequency Range: Up to 500 kHz

Output Type: TTL compatible

Temperature Range: 0°C to +70°C

Timer Modes: Monostable, Astable, Bistable

✅ Features:

Highly stable and accurate timing

Adjustable duty cycle and time delay

Sourcing or sinking output current

Low power consumption

Easy to integrate into breadboards and PCBs

🔌 Applications:

LED blinkers & flashers

Pulse Width Modulation (PWM)

Tone & sound generators

Delay timers

Oscillators

Frequency dividers

DIY & Arduino projects
