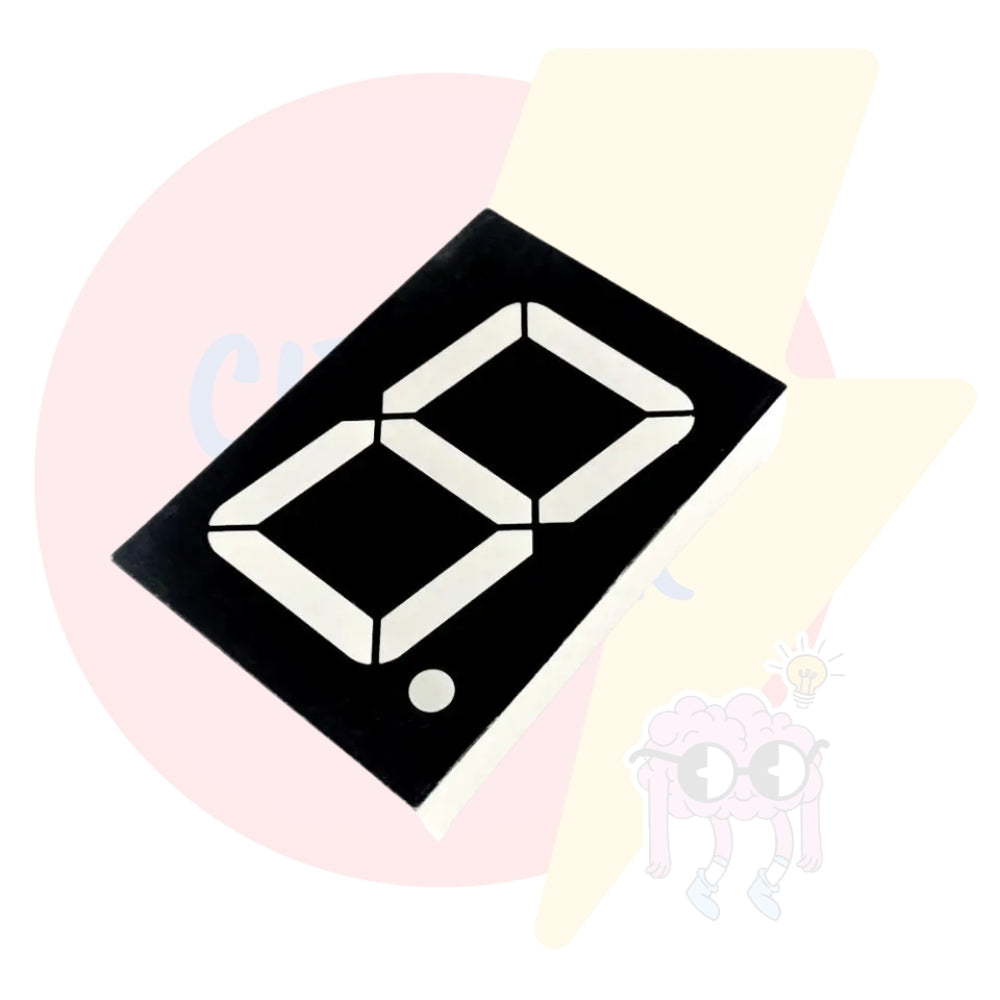

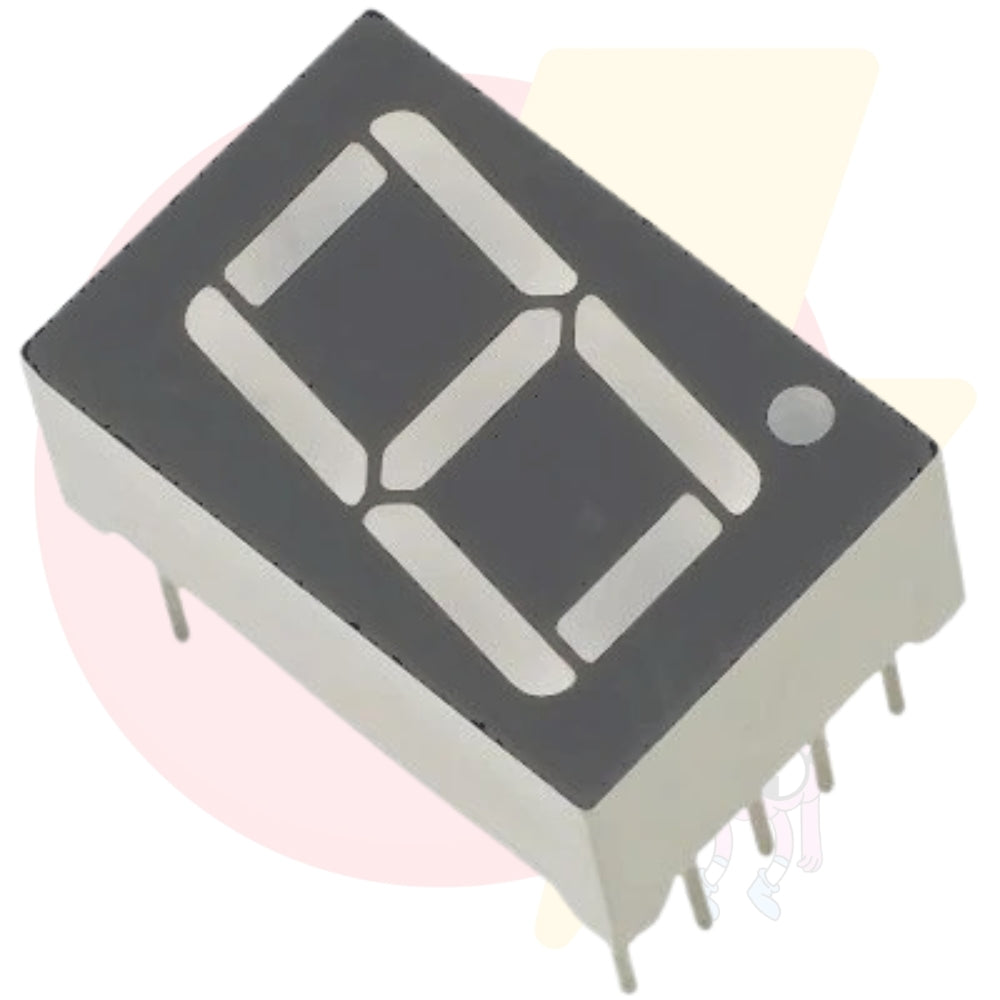

Single Digit Seven Segment Display (Common Anode)

Bring your electronics projects to life with this high-quality Single Digit 7-Segment Display (Common Anode) — perfect for digital counters, clocks, voltage meters, or any numerical output application.

✅ Features:

Clear & Bright Red LED Segments

Common Anode Configuration – Ideal for microcontrollers like Arduino, Raspberry Pi, ESP32

Compact & Easy to Integrate – Fits perfectly on breadboards and PCBs

High Visibility – Crisp display even in moderate lighting

📐 Specifications:

Display Type: 7-Segment (1 Digit)

Color: Red

Configuration: Common Anode

Number Height: ~0.56 inch

Pin Type: Through-Hole

Forward Voltage: 1.8V–2.2V per segment

Current: 10–20mA per segment

🧠 Use Cases:

Digital Clocks

Scoreboards

DIY Counters

Timers & Meters

Arduino & Robotics Projects

📦 What's in the Box:

1 × Single Digit Seven Segment Display (Common Anode)
